Khoom nta
Zoo heev High -Temperature Strength thiab Creep Resistance
MAR-M 509 muaj lub zog tensile zoo tshaj plaws, lub zog tawm los, thiab nkag siab tsis kam ntawm qhov kub thiab txias vim yog cov kua qaub ntxiv zog (tungsten) hauv cov cobalt matrix thiab dispersion ntxiv dag zog los ntawm carbides (MC thiab M₂₃C₆ hom). Lub alloy lub sij hawm ntev -lub sij hawm lub zog ntawm 900℃yog 40-50 MPa siab tshaj qhov piv ntawm alloy X-40, nrog ib tug txhim kho kub muaj peev xwm ntawm 40-50℃. Nws yog qhov tsim nyog rau cov khoom nyob ruaj ruaj xws li turbine qhia vanes thiab cov lus qhia uas raug rau lub sijhawm ntev ntawm kev kub ntxhov.
Zoo Oxidation thiab Kub Corrosion Resistance
The high chromium content (approximately 23%) promotes the formation of a dense and stable Cr₂O₃ oxide film on the alloy surface, effectively preventing matrix oxidation in high-temperature oxidizing atmospheres. Tsis tas li ntawd, qhov sib ntxiv ntawm cov ntsiab lus xws li tantalum thiab tungsten ntxiv txhim khu lub alloy lub tshav kub corrosion kuj. Lub cobalt matrix muaj kev tiv thaiv zoo rau cov xov xwm kub corrosion xws li sulfur thiab vanadium, ua rau nws tshwj xeeb tshaj yog haum rau siab - qhov kub thiab txias ib puag ncig hauv cov tshuab dav hlau thiab cov roj turbines.
Zoo Microstructural Stability thiab Thermal Shock Resistance
MAR-M 509 tuav cov qauv carbide ruaj khov thaum lub sij hawm ntev - lub sij hawm siab - kub qhov kev pab cuam thiab ua pov thawj zoo thermal shock resistance. Txawm tias nyob rau hauv cov xwm txheej ntawm qhov kub thiab txias, nws cov khoom siv kho tshuab tseem nyob ruaj khov, ua rau nws haum rau kub -kawg cov khoom hauv cov tshuab dav hlau thiab cov roj turbines uas muaj kev pib ntau zaus - nce thiab kaw lub voj voog.
Casting thiab Machining Properties
MAR-M 509 feem ntau yog tsim los siv cov txheej txheem precision casting (kev nqis peev casting) cov txheej txheem, uas yog tsim rau kev tsim cov complex-zoo li kub- kawg cov khoom xws li turbine qhia vanes thiab cov lus qhia. Lub alloy muaj feem ntau siv tau machining zog thiab pom zoo kom machined nrog nyuaj hlau txiav cov cuab yeej. Nws txoj kev weldability yog txwv thiab yuav tsum tau siv cov txheej txheem tshwj xeeb.
Technical Specifications
Tshuaj muaj pes tsawg leeg
|
Lub ntsiab |
Standard Requirements |
Sau ntawv |
|
Co |
Cov khoom seem (52.5-58.45%) |
Matrix cov ntsiab lus uas muab siab - kub lub zog, thermal stability, thiab zoo heev thermal corrosion kuj |
|
Cr |
22.5 --- 24.35% |
Tsim ib daim ntawv tuab Cr₂O₃ tiv thaiv zaj duab xis, muab oxidation thiab thermal corrosion kuj |
|
Ni |
9.0 --- 11.0% |
Stabilize lub austenitic qauv, txhim kho toughness thiab machinability |
|
W |
6.5 --- 7.5% |
Muab cov kuab tshuaj tseem ceeb ntxiv dag zog thiab carbide ntxiv dag zog, txhim kho siab -kub creep resistance |
|
Ta |
3.0 --- 4.0% |
Daim ntawv ruaj khov MC-hom carbides los txhim kho siab - kub lub zog thiab microstructural stability |
|
C |
0.55 --- 0.65% |
Cov ntaub ntawv carbides nrog chromium, tungsten, thiab tantalum, ua lub hauv paus tseem ceeb ntawm siab - qhov kub thiab txias |
|
Zr |
0.3 --- 0.6% |
Cov me me ntxiv los txhim kho grain ciam zog thiab creep kuj |
|
Ti |
0.15 --- 0.25% |
Daim ntawv carbide los pab txhawb zog |
|
Fe |
Tsawg dua lossis sib npaug li 1.5% |
Kev tswj nruj kom paub meej purity thiab lub koom haum ruaj ntseg |
|
Si |
Tsawg dua lossis sib npaug li 0.4% |
Deoxidizer |
|
Mn |
Tsawg dua lossis sib npaug li 0.1% |
Deoxidizer |
|
P |
Tsawg dua lossis sib npaug li 0.015% |
impurity yam |
|
S |
Tsawg dua lossis sib npaug li 0.015% |
Tiv thaiv kub brittleness |
Lub cev muaj zog
|
Khoom |
Tus nqi / Ntau |
Kev Xeem |
|
Qhov ntom |
8.86 g / cm³ |
Chav ntsuas kub (20 degree) |
|
Melting Point |
1346 --- 1395 degree |
--- |
|
Coefficient ntawm Thermal Expansion (20-100 degree) |
12.0 × 10⁻⁶ /K |
--- |
|
Elastic Modulus (Young's Modulus) |
200 --- 220 GPa |
Chav ntsuas kub |
|
Thermal conductivity (20 degree) |
10 --- 12 W/(m·K) |
--- |
|
Magnetism |
Tsis yog-magnetic (magnetic tsis muaj zog) |
Cobalt-raws li alloys feem ntau tsis yog- sib nqus los yog tsis muaj zog sib nqus ntawm chav tsev kub |
Mechanical Properties (Annealed Condition, Type Values)
|
Khoom |
Tus nqi |
Specification |
|
Tensile zog |
Ntau dua lossis sib npaug li 725 MPa |
AMS 5370 / ASTM B815 Cov |
|
Yield zog (0.2% Offset) |
Ntau dua lossis sib npaug li 450 MPa |
AMS 5370 / ASTM B815 Cov |
|
Elongation |
Ntau dua lossis sib npaug li 5.0% |
AMS 5370 / ASTM B815 Cov |
|
Hardness (Cast Condition) |
30-35 HRC(≈ 290-330 HB) |
--- |
Lus Cim: Cov alloy no yog cov cam khwb cia cobalt-raws siab- kub alloy. Tsawg elongation yog nws cov yam ntxwv zoo ib yam, thiab nws tsim nyog rau qhov zoo li qub lossis qis - lim kev ua haujlwm.
High -kev ua haujlwm kub
MAR-M 509 muaj peev xwm tswj tau lub zog ntawm qhov kub thiab txias, nrog rau cov txiaj ntsig zoo hauv qab no:
|
Kub |
Tensile Strength (Tswj tus nqi) |
Lub zog ruaj khov (100h, Tus nqi zoo) |
|
Chav ntsuas kub |
Ntau dua lossis sib npaug li 725 MPa |
--- |
|
650 degree |
650 MPa rau |
--- |
|
815 degree |
450 MPa |
230 MPa |
|
900 degree |
350 MPa |
150 MPa |
|
980 degree |
250 MPa |
90 MPa ua |
|
1090 degree |
150 MPa |
38 MPa |
Antioxidant Performance:
Nyob rau hauv oxidizing cua mus txog 1000-1100℃, MAR-M 509 ua kom tuab thiab zoo-adhered Cr₂O₃ oxide txheej ntawm nws qhov chaw, ua rau qis oxidation qhov hnyav nce piv rau cov pa roj carbon monoxide thiab ntau yam hlau{5}}raws li cov hlau{5}} Nyob rau hauv ib puag ncig uas muaj kev sib txuas ntawm cov sulfur- uas muaj cov roj, nws cov thermal corrosion kuj tshaj li ntawm ntau cov hlau-raws li thiab npib tsib xee-raws li kub-kub alloys.
Microstructural Stability:
Thaum lub sij hawm ntev - raug rau ntawm 800-1050 degree, cov qauv carbide ntawm MAR-M 509 tseem nyob ruaj khov, ua kom nws cov khoom siv dag zog thiab tawv thaum lub sijhawm ua haujlwm kub ntev.
Siv tau Media:
Siab - cua kub, combustion flue gases (muaj sulfur thiab vanadium)
Siab -kub oxidizing cua
Qhov chaw thermal corrosion (muaj Na₂SO₄, V₂O₅, thiab lwm yam)
High -kub gases (ntws txoj hauv kev ntawm cov roj turbines)
Nco tseg: MAR-M 509 feem ntau yog tsim los siv rau hauv siab -kub gaseous media ib puag ncig thiab tsis haum rau aqueous corrosion ib puag ncig.
MAR-M 509 tshwj xeeb yog tsim los rau qhov kub siab tshaj -kub, oxidation, thiab thermal corrosion ib puag ncig, thiab tau pom zoo siv rau hauv cov chaw hauv qab no:
Daim ntawv thov teb
-
Aerospace: Turbine guide vanes, guides, turbine stator blades, combustion chamber Cheebtsam, thiab siab -kub seals ntawm aircraft engine.
-
Industrial Gas Turbines: Kub-kawg stator Cheebtsam xws li turbine guide vanes, guides, transition pieces, and seal rings.
-
Lub Hwj Chim Loj: Siab - qhov kub thiab txias stator Cheebtsam thiab cov pa roj kub ntawm cov roj turbines.
-
Marine Engines: Turbine qhia vanes thiab kub-kawg cov khoom ntawm cov tshuab marine siab heev.
-
High-Tsuas Muaj Cov Hluav Taws Xob: Siab- qhov kub thiab txias- cov kabmob xws li lub tshuab hluav taws xob yob, cov raj xa hluav taws xob, cov khoom siv kho cua sov, thiab cov pob tawb (ua haujlwm kub tsawg dua lossis sib npaug li 1050℃).
Kev xa khoom thiab Customization
Peb muab cov kev daws teeb meem hloov tau yooj yim thiab txhim khu kev qha kom ntseeg tau tias koj tau txais MAR-M 509 cov ntaub ntawv uas phim koj qhov project xav tau.
|
Daim ntawv |
 Ntawv / phaj
|

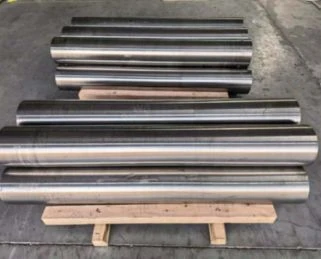

 Bar / Qws
|
 Tube / Tube
|
 Sawb / Sheet Coil
|
 Hlau / Hlau Rod
|
Precision Castings (Kev nqis peev Casting)
|
|---|---|---|---|---|---|---|
|
Pauv ntau yam |
Thickness: 0.5 - 100 hli |
Txoj kab uas hla Φ6-500mm |
Sab nraud txoj kab uas hla Φ10-300mm |
Thickness: 0.1-3.0 hli |
Txoj kab uas hla Φ0.5-10mm |
Customize raws li cov duab kos |
|
Customization Muaj peev xwm |
Tshwj xeeb tuab / nyias dov, ntxiv dav daim hlau; tshwj xeeb nto kho, tsau -ntev txiav |
Loj - loj forged tuav (txog Φ800 mm), tshwj xeeb - zoo li tus tuav |
Loj - txoj kab uas hla tuab - cov kav dej, tshwj xeeb alloy muaj pes tsawg leeg; Yeeb nkab kawg ua (beveling, ruaj ntev) |
Cov xwm txheej sib txawv, kev kho cua sov tshwj xeeb, kua qaub-ntxuav nto |
Kev kho deg tshwj xeeb, kos duab precision |
Core morphology. Tsim nyog rau txoj kev-zoo li kub- kawg cov khoom xws li turbine qhia vanes, cov lus qhia, thiab cov nplhaib foob |
Vim li cas thiaj xaiv peb? - Txhim khu kev qha Engineering Technology. Dependable xa khoom.
Peb tsis yog ib tus neeg muag khoom xwb, tab sis yog ib tus neeg koom tes nrog cov ntaub ntawv ntseeg siab rau koj hauv Suav teb.
Vertically Integrated Production
Muaj 20,000㎡ qhov chaw nrog 10+ automated kab (8, 000+ tons / xyoo). Hauv - tsev cuab yeej & qhov chaw tuag ua rau muaj kev hloov kho sai thiab tswj tus nqi zoo - tsis muaj tus neeg nruab nrab kos npe.
Kev Tswjhwm nruj nruj ntawm txhua theem
Tag nrho traceability nyob rau hauv lub tseem ceeb QC checkpoints thoob plaws hauv ntau lawm . 100% raws li ASTM/ASME, EN, thiab GB qauv. Cov ntaub ntawv xeem cov ntaub ntawv muaj nyob nrog txhua qhov khoom xa tuaj.
Txhim khu kev xa khoom & Export ntim
10+ xyoo xa tawm mus rau Tebchaws Europe, North America, Southeast Asia & Middle East nrog cov dej tsis zoo thiab tiv thaiv- xeb, ua ke nrog cov kev xaiv thauj khoom yooj yim kom muaj kev nyab xeeb thiab nyob rau - lub sijhawm tuaj txog.
Qauv validation ua ntej pawg ntau lawm
Peb muab cov qauv dawb rau kev kuaj xyuas zoo, tso cai rau koj tso cov xaj xaj tsuas yog tom qab kev pom zoo. Peb xyuas kom meej qhov sib xws los ntawm cov qauv mus rau cov khoom loj los ntawm qhov ntsuas qhov tseeb thiab kev tsim pob tshab.
FAQ
Q: Dab tsi yog qhov zoo ntawm MAR-M 509?
Q: Yuav tsum tau kho cua sov dab tsi rau MAR-M 509?
Q: Qhov siab tshaj plaws kev khiav hauj lwm kub yog dab tsi?
Q: Qhov txawv ntawm MAR-M 509 thiab X-40 yog dab tsi?
