Khoom nta
Zoo heev Hardness thiab hnav tsis kam
Stellite 19 imparts zoo tiv thaiv abrasive thiab adhesive coj mus rau lub alloy los ntawm kev tsim ntawm uniformly faib M₇C₃- hom carbides. Cov hardness ib txwm nyob rau hauv raws li - nrum los yog weld- tej yam kev mob tso nyiaj yog HRC 38-46 (kwv yees HV 350-450). Nws hnav tsis kam tshaj li ntawm Stellite 6, thiab nws cov tawv tawv yog siab dua li cov qib siab carbon, ua rau nws tsim nyog rau cov ntawv thov uas hnav nruab nrab thiab muaj kev cuam tshuam me ntsis coexist.
Zoo Siab -Tub kub Hardness thiab Oxidation Resistance
Stellite 19 khaws cia li 30 HRC hardness ntawm 600 degree, txog 23 HRC ntawm 760℃(1400℃F), thiab txog 18 HRC ntawm 870℃(1600℃F). Cov ntsiab lus siab chromium txhawb kev tsim cov Cr₂O₃ oxide zaj duab xis rau saum npoo. Tom qab raug cua ntawm 800℃rau 1000 teev, oxidation hnyav nce yog tsawg dua 1 mg / cm². Nws cov oxidation kuj zoo dua rau cov hlau feem ntau -raws li hnav- cov ntaub ntawv resistant, ua rau nws haum rau siab - kub cyclic daim ntaub ntawv xws li kub shearing thiab kub extrusion.
Zoo Corrosion Resistance
Nrog kwv yees li ntawm 30% chromium cov ntsiab lus, Stellite 19 nthuav tawm qhov zoo corrosion kuj nyob rau hauv oxidizing acids (xws li, nitric acid), nruab nrab concentrated tsis yog - oxidizing acids (xws li, Tsawg dua los yog sib npaug rau 50% sulfuric acid), thiab alkaline daws. Nyob rau hauv dej hiav txwv thiab chloride ib puag ncig, nws feem ntau qhia pitting corrosion es tsis zoo corrosion, thiab tuav ruaj khov corrosion kuj nyob rau hauv siab -kub cua uas muaj sulfur thiab chlorine.
Zoo Machinability thiab Weldability
Stellite 19 muaj kev sib txuas zoo dua thiab ua haujlwm tau zoo dua li nruab nrab - mus rau - qib siab carbon. Nws tuaj yeem tso tau siv PTA, TIG, thiab oxy-acetylene vuam txoj kev. Preheating rau 300-450℃thiab qeeb txias tom qab vuam tau pom zoo kom txo qis kev pheej hmoo ntawm kub tawg. Kev siv lub tshuab tsis muaj peev xwm tuaj yeem ua tau nyob rau hauv cov xwm txheej annealed, nrog kev ua tiav kawg pom zoo siv kev sib tsoo lossis hluav taws xob tawm machining (EDM).
Technical Specifications
Tshuaj muaj pes tsawg leeg
|
Element |
Standard Requirements |
Sau ntawv |
|
Co |
Cov khoom seem |
Matrix cov ntsiab lus uas muab siab - kub lub zog, thermal stability, toughness, thiab inherent corrosion kuj |
|
Cr |
28.0 - 32.0% |
Tsim ib daim ntawv tuab Cr₂O₃ tiv thaiv zaj duab xis, muab oxidation thiab corrosion kuj, thiab tseem yog ib feem tseem ceeb ntawm hard carbides. |
|
W |
7.0 - 9.0% |
Muab cov tshuaj tiv thaiv kom muaj zog, ua kom tawv nqaij thiab hnav- cov carbides resistant nrog cov pa roj carbon, thiab txhim kho siab - kub hardness |
|
C |
0.8 - 1.2% |
Tsim cov carbides tsim nyog nrog chromium thiab tungsten los muab kev hnav tsis kam thaum tuav zoo toughness |
|
Fe |
Tsawg dua lossis sib npaug li 3.0% |
Kev tswj nruj kom paub meej purity thiab microstructural stability |
|
Ni |
Tsawg dua lossis sib npaug li 3.0% |
Kev tswj nruj nruj kom tiv thaiv nickel ntau dhau los ua rau embrittlement |
|
Si |
Tsawg dua lossis sib npaug li 2.0% |
Deoxidizer |
|
Mn |
Tsawg dua lossis sib npaug li 1.0% |
Deoxidizer, txhim kho kev ua haujlwm |
|
Mo |
Tsawg dua lossis sib npaug li 1.0% |
Kev xaiv me me ntxiv los muab cov kev daws teeb meem zoo zog ntxiv thiab pitting corrosion kuj |
Lub cev muaj zog
|
Khoom |
Tus nqi / Ntau |
Kev Xeem |
|
Qhov ntom |
8.69 - 8.87 g/cm³ |
Chav tsev kub (20 degree) |
|
Melting Point |
1280 - 1390 degree |
- |
|
Coefficient ntawm Thermal Expansion (20-100 degree) |
11.5 - 12.5 × 10⁻⁶ /K |
- |
|
Elastic Modulus (Young's Modulus) |
205 - 230 GPa |
Chav ntsuas kub |
|
Thermal conductivity (20 degree) |
14.5 - 14.8 W/(m·K) |
- |
|
Kev kub siab (20 degree) |
0.85 - 0.94 μΩ·m |
- |
|
Magnetism |
Tsis yog-magnetic (magnetic tsis muaj zog) |
Cobalt-raws li alloys feem ntau tsis yog- sib nqus los yog tsis muaj zog sib nqus ntawm chav tsev kub |
Mechanical Properties (Ntaus / Welded Condition, Hom Tus Nqi)
|
Khoom |
Tus nqi |
Specification |
|
Hardness (Cast / Weld Overlay Condition) |
38 - 46 HRC(350 - 450 HV) |
AWS A5.21 ECoCr-A |
|
Tensile zog |
700 - 850 MPa |
- |
|
Yield zog (0.2% Offset) |
550 - 700 MPa |
- |
|
Elongation |
1 - 3% (cov khoom siv nkig) |
- |
|
Compressive zog ntawm chav tsev kub |
2000 - 2300 MPa |
- |
|
Impact toughness |
Charpy V-notch 10 - 20 J |
- |
High -kev ua haujlwm kub
Siab -Temperature Hardness (Core Advantage): Stellite 19 tuav zoo hardness ntawm qhov kub thiab txias. Hauv qab no yog cov ntaub ntawv siv tau zoo li cas hardness hloov nrog kub:
|
Kub |
Hom hardness |
|
Chav ntsuas kub |
38 - 46 HRC |
|
400℃(750℃F) |
34 HRC |
|
600℃(1110℃F) |
30 HRC |
|
760℃(1400℃F) |
23 HRC |
|
870℃(1600℃F) |
18 HRC |
Antioxidant Performance:
Nyob rau hauv siab -kub oxidation ib puag ncig, Stellite 19 tsim ib Cr₂O₃ oxide zaj duab xis ntom ntom ntawm nws qhov chaw. Tom qab raug huab cua ntawm 800℃rau 1000 teev, oxidation hnyav nce tsawg dua 1 mg / cm², ua kom pom cov khoom antioxidant zoo dua li cov hlau feem ntau -raws li cua sov- resistant steels.
Ntev -Lub Sij Hawm Thermal Stability:
Thaum nyob rau hauv kev pab cuam ntawm kub siab tshaj 600℃rau ncua sij hawm, lub alloy exhibits zoo heev microstructural stability tsis muaj theem tseem ceeb transformation los yog softening. Lub allotropic transformation ntawm cobalt matrix thiab khoom- kev daws teeb meem los ntawm tungsten collectively xyuas kom meej nws lub neej ntev kev pab cuam nyob rau hauv siab - kub.
Siv tau Media:
1. Seawater, dej ntsev (zoo heev pitting corrosion kuj)
2. Oxidizing acids: Nitric acid (superior corrosion kuj ntawm chav tsev kub)
3. Tsis yog -oxidizing acids: Sulfuric acid (concentration Tsawg dua los yog sib npaug rau 50%), hydrochloric acid (concentration Tsawg dua los yog sib npaug li 30%) (corrosion rate feem ntau<0.1 mm/a)
4. Alkaline daws: Sodium hydroxide, potassium hydroxide (resistant rau tag nrho cov concentrations)
5. Organic acids: Acetic acid, formic acid, thiab lwm yam.
6. Siab -kub oxidizing cua, sulfur / chlorine- muaj roj (tsim ib qho kev tiv thaiv Cr₂O₃ zaj duab xis rau saum npoo)
Lus Cim: Stellite 19 muaj qhov txwv tsis pub muaj kev tiv thaiv corrosion hauv kev txo cov kua qaub (xws li, concentrated kub hydrochloric acid) thiab fluorine- muaj cov xov xwm. Rau siab - kev sib txhuam kev nyuaj siab, nws raug nquahu kom siv ua ke nrog lubricating media.
Stellite 19 yog tsim rau nruab nrab mus rau siab hnav, muaj feem cuam tshuam, thiab thermal cycling tej yam kev mob, thiab raug pom zoo rau cov nram qab no:
Daim ntawv thov teb
-
Li qub thiab sealing kev lag luam: siab thiab nruab nrab siab valve sealing nto (lub rooj zaum, discs, stems), twj tso kua mis casings, rotating seals, thiab mechanical seals. Nws muaj kev hnav zoo dua li Stellite 6, ua rau nws tsim nyog rau kev tshaj tawm uas muaj cov khoom siv thiab cov thermal cycling.
-
Aerospace thiab Zog: Gas turbine qhia vanes, cav valve sealing nto, turbocharger ntsaws ruaj ruaj, thiab siab - kub bearings, uas yuav tsum tau zoo thermal qaug zog kuj.
-
Roj thiab Roj: Hnav qhov chaw ntawm cov cuab yeej downhole, laum cov yeeb nkab txuas, lub valve sab hauv, thiab cov av nkos twj tso kua mis, kom tiv taus siab - nrawm nrawm los ntawm cov xuab zeb- muaj cov xov xwm.
-
Muaj Machinery thiab cov cuab yeej: Kub extrusion tuag, kub shear hniav, tuag-casting pwm ( rooj vag, plungers), extruder screws, thiab txiav ntug rau yas ua.
-
Tshuaj thiab Petrochemical: Reactor agitator blades, hnav-cov ntaub ntawv tiv thaiv rau lub tshav kub exchanger raj phaj, thiab twj tso kua mis / valve sealing qhov chaw, uas ua rau muaj kev sib xyaw ua ke ntawm corrosion thiab hnav.
-
Nuclear Fais Fab Kev Lag Luam: Nuclear Island valve ntsaws ruaj ruaj thiab nuclear- qib hnav- cov ntaub ntawv tiv thaiv, siv nws cov hluav taws xob siab ntev thiab microstructural stability.
-
Shipbuilding thiab Offshore Engineering: Hnav- tiv thaiv qhov chaw ntawm lub kiv cua thiab cov twj tso kua mis / lub valve, kom tiv thaiv dej hiav txwv corrosion thiab kev siv tshuab.
-
Automotive thiab Internal Combustion Engines: High-kev ua tau zoo ntawm lub cav tso pa tawm, lub caj npab rocker, thiab turbocharger ntsaws ruaj ruaj, tswj kev hnav thiab qaug dab peg ntawm qhov kub thiab txias.
-
Kev kho cov hlau thiab cua sov: Kub shear blades, kub saw hniav, rauv hauv qab yob, thiab coj yob, uas tiv taus siab - kub oxidation thiab abrasive hnav.
-
Iav thiab Ceramic Forming: iav pwm thiab kub extrusion tuag, vim lawv zoo heev corrosion kuj rau molten iav thiab ceramics.
Kev xa khoom thiab Customization
Peb muab cov kev daws teeb meem hloov tau yooj yim thiab txhim khu kev qha kom ntseeg tau tias koj tau txais Stellite 19 cov ntaub ntawv uas phim koj qhov project xav tau.
|
Daim ntawv |
 Ntawv / phaj
|
 Bar / Qws
|

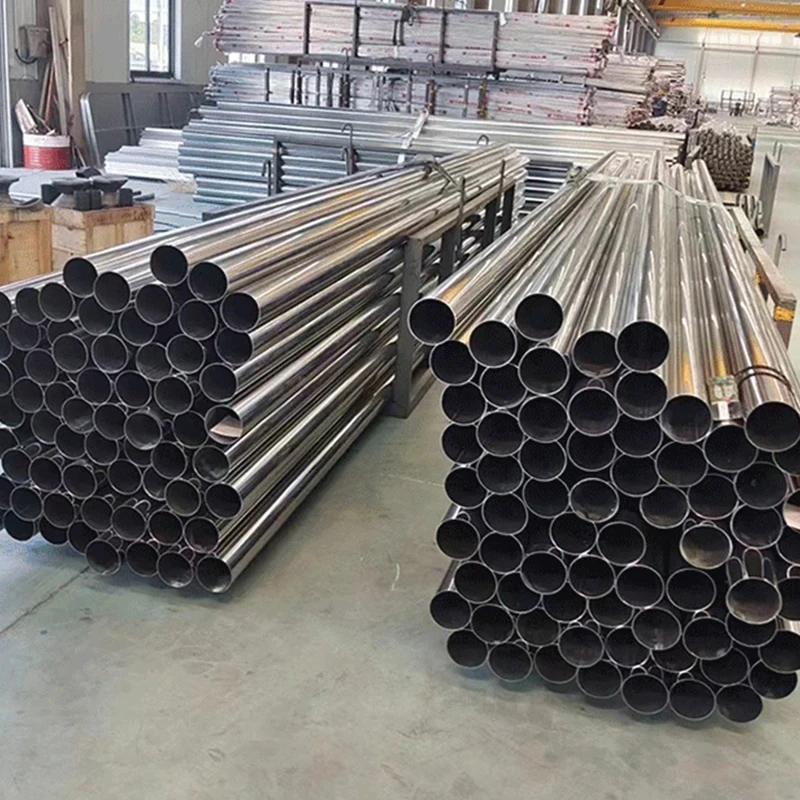

 Seamless Yeeb Nkab
|
 Sawb / Sheet Coil
|

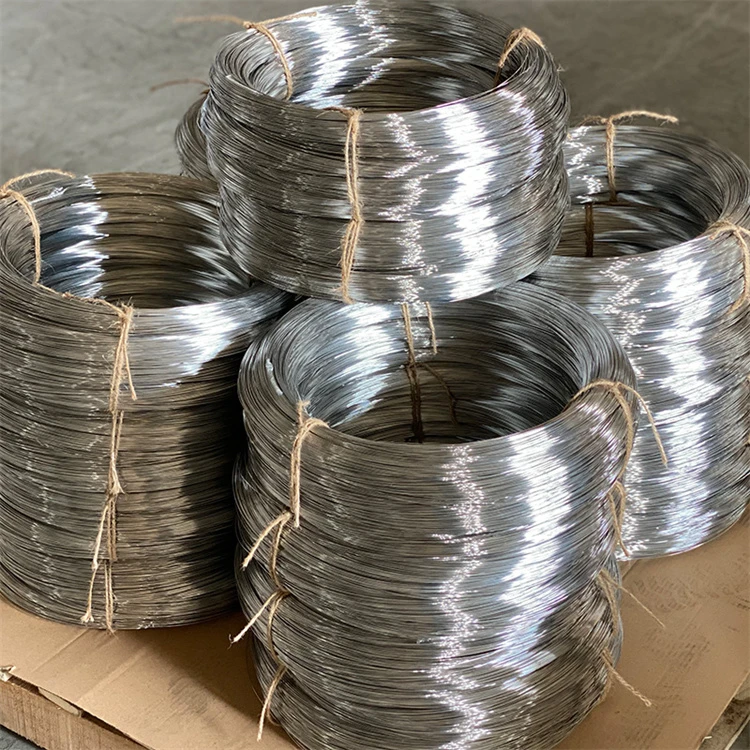

 Hlau / Hlau Rod
|
|---|---|---|---|---|---|
|
Pauv ntau yam |
Thickness: 0.5 - 100 hli |
Txoj kab uas hla Φ6-500mm |
Sab nraud txoj kab uas hla Φ10-300mm |
Thickness: 0.1-3.0 hli |
Txoj kab uas hla Φ0.5-10mm |
|
Customization Muaj peev xwm |
Tshwj xeeb tuab / nyias dov, ultra- daim hlau dav; tshwj xeeb nto kho, tsau -ntev txiav |
Loj- loj forged tuav (txog Φ800 mm), tshwj xeeb- cov kab tuav, thiab ntau yam kev kho cua sov |
Loj - txoj kab uas hla tuab - cov kav dej, tshwj xeeb alloy muaj pes tsawg leeg; Yeeb nkab kawg ua (beveling, ruaj ntev) |
Cov xwm txheej sib txawv, kev kho cua sov tshwj xeeb (kev kho kom ruaj khov, tswj qhov loj me), cov kua qaub- ntxuav qhov chaw, electrolytic polishing, txheej, lossis cov yeeb yaj kiab tiv thaiv tshwj xeeb |
Kev kho deg tshwj xeeb, kos duab precision |
Vim li cas thiaj xaiv peb? - Txhim khu kev qha Engineering Technology. Dependable xa khoom.
Peb tsis yog ib tus neeg muag khoom xwb, tab sis yog ib tus neeg koom tes nrog cov ntaub ntawv ntseeg siab rau koj hauv Suav teb.
Vertically Integrated Production
Muaj 20,000㎡ qhov chaw nrog 10+ automated kab (8, 000+ tons / xyoo). Hauv - tsev cuab yeej & qhov chaw tuag ua rau muaj kev hloov kho sai thiab tswj tus nqi zoo - tsis muaj tus neeg nruab nrab kos npe.

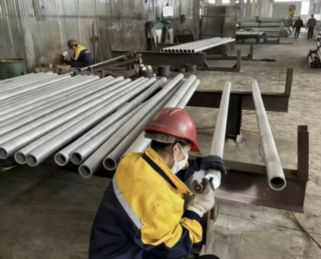

Kev Tswjhwm nruj nruj ntawm txhua theem
Tag nrho traceability nyob rau hauv lub tseem ceeb QC checkpoints thoob plaws hauv ntau lawm . 100% raws li ASTM/ASME, EN, thiab GB qauv. Cov ntaub ntawv xeem cov ntaub ntawv muaj nyob nrog txhua qhov khoom xa tuaj.
Txhim khu kev xa khoom & Export ntim
10+ xyoo xa tawm mus rau Tebchaws Europe, North America, Southeast Asia & Middle East nrog cov dej tsis muaj dej thiab tiv thaiv- xeb, ua ke nrog cov kev xaiv thauj khoom yooj yim kom muaj kev nyab xeeb thiab nyob rau - lub sijhawm tuaj txog.
Qauv validation ua ntej pawg ntau lawm
Peb muab cov qauv dawb rau kev kuaj xyuas zoo, tso cai rau koj tso cov xaj xaj tsuas yog tom qab kev pom zoo. Peb xyuas kom meej qhov sib xws los ntawm cov qauv mus rau cov khoom loj los ntawm qhov ntsuas qhov tseeb thiab kev tsim pob tshab.
FAQ
Q: Dab tsi yog qhov zoo ntawm Stellite 19?
Q: Dab tsi yog qhov yuav tsum tau kho cua sov rau Stellite 19?
Q: Qhov kev pabcuam siab tshaj plaws yog dab tsi?
Q: Qhov txawv ntawm Stellite 19 thiab Stellite 6 yog dab tsi?
