Khoom nta
Zoo heev High -temperature Strength
Nws nthuav tawm qhov ua tau zoo siab - qhov kub thiab txias zog, nkag siab tsis kam, thiab kev ntxhov siab- cov khoom tawg hauv qab 650 degree, ua rau nws yog ib qho khoom siv zoo tshaj plaws rau cov khoom tseem ceeb hauv aerospace engines thiab gas turbines.
Zoo Corrosion Resistance
Nws muaj qhov zoo oxidation tsis kam ntawm qhov kub thiab txias thiab zoo corrosion kuj mus rau ntau yam corrosive media, nrog rau cov chaw hauv dej hiav txwv thiab acidic media, haum rau petrochemical thiab marine engineering daim ntaub ntawv.
Kev ua tau zoo Fatigue
Nws ua kom pom kev ua haujlwm zoo rau qis- lub voj voog qaug zog thiab thermal qaug zog, tswj kev ua haujlwm ruaj khov nyob rau hauv cyclic loading thiab kub hloov pauv, haum rau qaug zog- cov khoom rhiab heev xws li turbine disks thiab compressor hniav.
Zoo Machinability thiab Weldability
Piv nrog rau lwm cov nag lossis daus -nickel hardened-raws li alloys, Inconel 718 muaj kev ua haujlwm txias thiab kub ua haujlwm zoo nrog rau kev sib txuas, tso cai rau nws ua tiav rau ntau hom ntawv xws li phaj, tuav, forgings, raj, thiab fasteners.
Technical Specifications
Tshuaj muaj pes tsawg leeg
|
Element |
Standard Requirements |
Sau ntawv |
|
Ni |
50.0 - 55.0% |
Matrix ntsiab uas muab corrosion thiab siab -kub tsis kam |
|
Cr |
17.0 - 21.0% |
Muab cov antioxidant thiab corrosion kuj muaj peev xwm |
|
Fe |
tshuav nyiaj li cas |
Kev them nyiaj yug tus qauv nrog cov nqi txiav txim siab |
|
Nb+ Tau |
4.75 - 5.50% |
Cov dej nag ntxiv dag zog ntawm cov ntsiab lus tseem ceeb los tsim "theem |
|
Mo |
2.80 - 3.30% |
Cov tshuaj tiv thaiv kom muaj zog, ua kom muaj zog siab - qhov kub thiab txias |
|
Ti |
0.65 - 1.15% |
Cov nag lossis daus ntxiv ua rau 'theem |
|
Al |
0.20 - 0.80% |
Cov nag lossis daus ntxiv ua rau 'theem |
|
C |
Tsawg dua lossis sib npaug li 0.08% |
Kev tswj nruj kom tswj tau cov khoom siv kho tshuab |
|
Si |
Tsawg dua lossis sib npaug li 0.35% |
Deoxidizer, txhim kho kev ua haujlwm kub |
|
Mn |
Tsawg dua lossis sib npaug li 0.35% |
Deoxidizer, txhim kho kev ua haujlwm kub |
|
P |
Tsawg dua lossis sib npaug li 0.015% |
Kev tswj nruj kom tsis txhob kub brittleness |
|
S |
Tsawg dua lossis sib npaug li 0.015% |
Kev tswj nruj kom tsis txhob kub brittleness |
|
Cu |
Tsawg dua lossis sib npaug li 0.30% |
Residual Element |
Lub cev muaj zog
|
Khoom |
Tus nqi / Ntau |
Kev Xeem |
|
Qhov ntom |
8.19 g / cm³ |
Chav tsev kub (20 degree) |
|
Melting Point |
1260 - 1335 degree |
- |
|
Tshwj xeeb kub muaj peev xwm |
435 J/kg · K |
20 degree |
Mechanical Properties (Kev daws teeb meem Annealed Condition, Tus nqi zoo)
|
Khoom |
Tus nqi |
Specification |
|
Tensile zog |
Ntau dua lossis sib npaug li 1240 MPa |
ASTM B 637 Cov |
|
Yield zog |
Ntau dua lossis sib npaug li 1000 MPa |
ASTM B 637 Cov |
|
Elongation |
Ntau dua lossis sib npaug li 12% |
ASTM B 637 Cov |
|
Hardness |
Tsawg dua lossis sib npaug li 40 HRC |
- |
High -kub Performance
Ntawm 538 degree, lub zog tensile tseem siab tshaj li ntawm 1000 MPa; ntawm 650 degree, nws tseem nyob siab tshaj li ntawm 800 MPa.
Ntev -lub sijhawm ua haujlwm kub ntau
Nws raug pom zoo rau kev ua haujlwm ntev -lub sijhawm ua haujlwm nyob rau hauv qhov kub ntawm -253℃txog 650 degree, qhov uas nws tswj cov khoom zoo thiab ruaj khov.
Txog li 700℃(rau luv- lub sij hawm raug).
Nws nthuav tawm kev nkag siab zoo heev thiab kev ntxhov siab- cov khoom tawg hauv qab 650 degree, ua rau nws haum rau siab -kub load-cov kabmob xws li turbine disks thiab cov hniav.
Nws muaj kev tiv thaiv oxidation zoo nyob rau hauv siab - qhov kub thiab txias thiab qhia tau zoo corrosion kuj rau marine ib puag ncig, acidic media, thiab chlorine - muaj ib puag ncig.
Los ntawm kev kho mob ntxiv rau kev laus kev kho cua sov (kev daws teeb meem kub 940-}1010 degree, kev kho laus 720℃/ 8h rauv txias rau 620℃/ 8h), \\" thiab ' nag lossis daus khov theem tau txais, ua tiav lub zog kub zoo heev.
Daim ntawv thov teb
-
Aerospace xyaw (turbine disks, compressor disks, hniav, casings, fasteners)
-
Gas turbines (turbine hniav, combustion chamber Cheebtsam)
-
Nuclear kev lag luam (reactor Cheebtsam, nuclear fuel element positioning grids)
-
Petrochemical kev lag luam (cov cuab yeej downhole, cov cuab yeej siv lub taub hau, kev kho cov roj acidic)
-
Automotive kev lag luam (-kev ua tau zoo turbocharger Cheebtsam)
-
Cryogenic engineering (kua hydrogen / kua oxygen cia tso tsheb hlau luam, ultra- qis- ntsuas kub)
-
Offshore engineering (subsea Christmas ntoo, twj tso kua mis thiab valve Cheebtsam)
-
Kev lag luam pwm (siab-kub extrusion pwm, kub ua hauj lwm pwm)
-
Fais fab tuag systems (supercritical fais fab nroj tsuag Cheebtsam)
-
High -kub springs thiab precision hardware qhov chaw
Kev xa khoom thiab Customization
Peb muab cov kev daws teeb meem hloov tau yooj yim thiab txhim khu kev qha kom ntseeg tau tias koj tau txais Inconel 718 cov ntaub ntawv uas phim koj qhov project xav tau.
|
Daim ntawv |

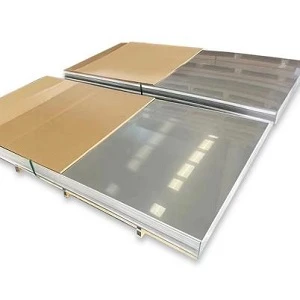

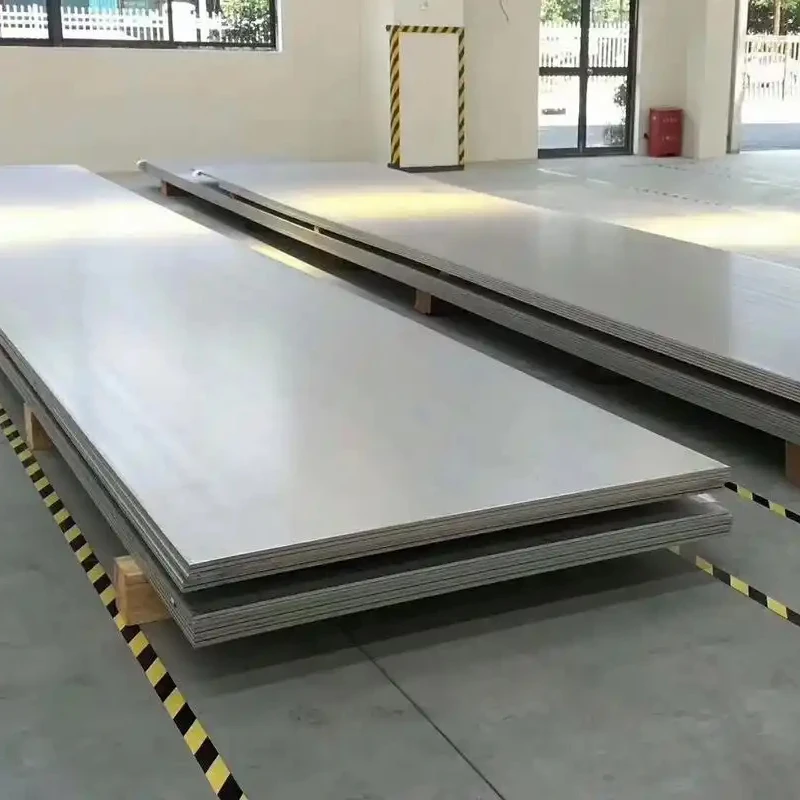

 Ntawv / phaj
|
 Bar / Qws
|

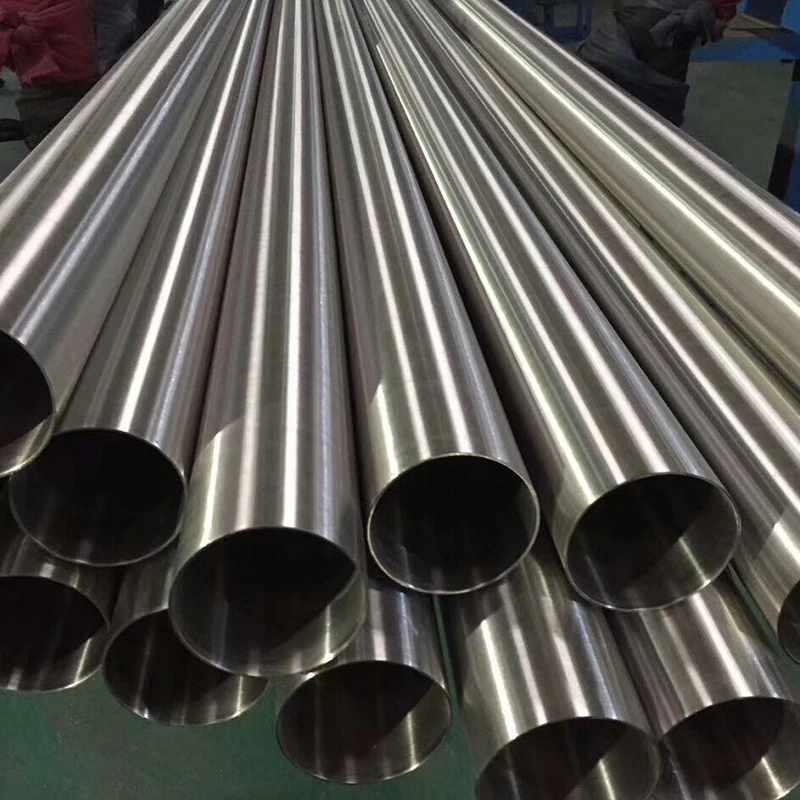

 Seamless Yeeb Nkab
|

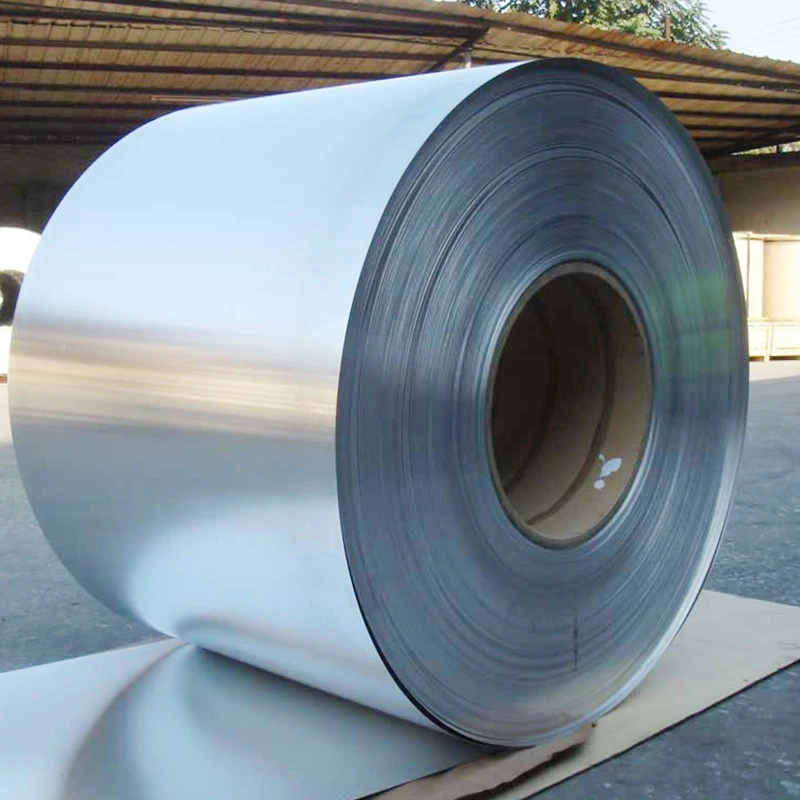

 Sawb / Sheet Coil
|

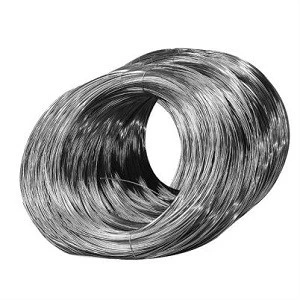

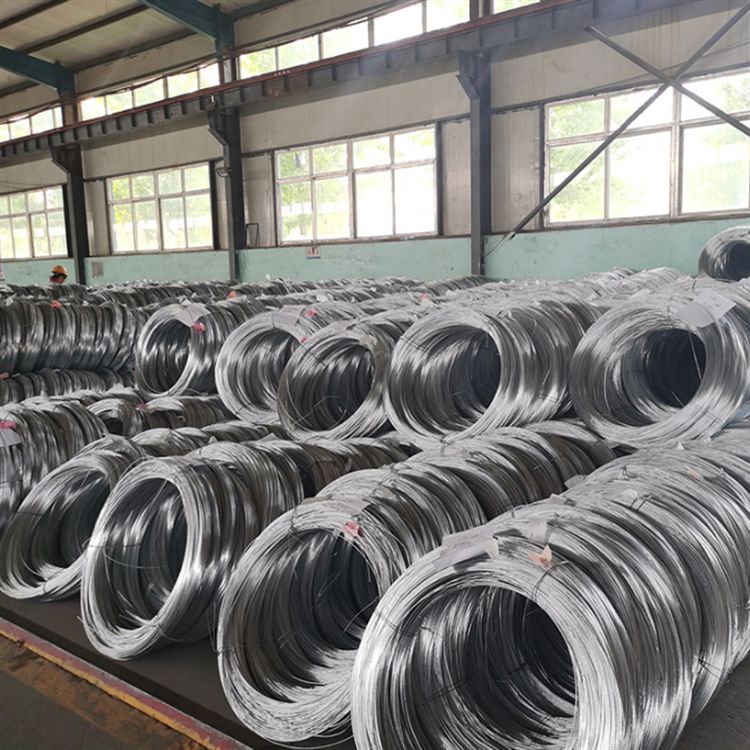

 Hlau / Hlau Rod
|
|---|---|---|---|---|---|
|
Pauv ntau yam |
Thickness: 0.5 - 100 hli |
Txoj kab uas hla Φ6-500mm |
Sab nraud txoj kab uas hla Φ10-300mm |
Thickness: 0.1-3.0 hli |
Txoj kab uas hla Φ0.5-10mm |
|
Customization Muaj peev xwm |
Tshwj xeeb tuab / nyias dov, ultra- daim hlau dav; tshwj xeeb nto kho, tsau -ntev txiav |
Loj- loj forged tuav (txog Φ800 mm), tshwj xeeb- cov kab tuav, thiab ntau yam kev kho cua sov |
Loj - txoj kab uas hla tuab - cov kav dej, tshwj xeeb alloy muaj pes tsawg leeg; Yeeb nkab kawg ua (beveling, ruaj ntev) |
Cov xwm txheej sib txawv, kev kho cua sov tshwj xeeb (kev kho kom ruaj khov, tswj qhov loj me), cov kua qaub- ntxuav qhov chaw, electrolytic polishing, txheej, lossis cov yeeb yaj kiab tiv thaiv tshwj xeeb |
Kev kho deg tshwj xeeb, kos duab precision |
Vim li cas thiaj xaiv peb ua koj tus neeg muab khoom? - Txhim khu kev qha engineering. Dependable shipping.
Peb yog ntau tshaj li tus neeg muag khoom; peb yog koj cov ntaub ntawv ntseeg siab koom tes hauv Suav teb.
Vertically Integrated Production
Nrog 20,000 square metres ntawm cov tswv tsev thiab tshaj 10 cov kab ntau lawm (ib xyoos twg muaj peev xwm tshaj 8,000 tons). Lub chaw pwm sab hauv txhawb kev hloov kho sai thiab kev tswj tus nqi zoo, tsis muaj qhov cim los ntawm cov neeg nruab nrab.

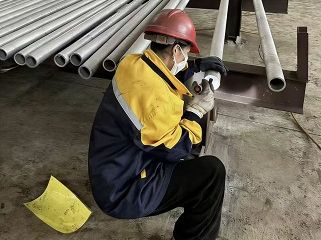

Kev Tswjhwm nruj nruj yog ua tiav ntawm txhua theem
Tag nrho traceability nyob rau hauv lub tseem ceeb QC checkpoints thoob plaws hauv ntau lawm . 100% raws li ASTM/ASME, EN, thiab GB qauv. Cov ntaub ntawv xeem cov ntaub ntawv muaj nyob nrog txhua qhov khoom xa tuaj.

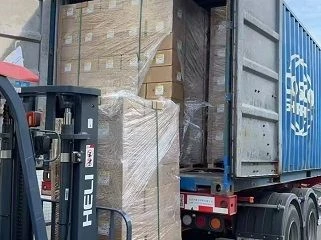

Txhim khu kev xa khoom thiab export ntim
Nrog ntau tshaj 10 xyoo ntawm kev xa tawm mus rau Tebchaws Europe, North America, Southeast Asia, thiab Middle East, peb cov khoom tau nruab nrog kev tiv thaiv tsis muaj dej thiab xeb. Ua ke nrog kev xaiv shipping yooj yim, qhov no ua kom muaj kev nyab xeeb thiab xa khoom raws sijhawm.

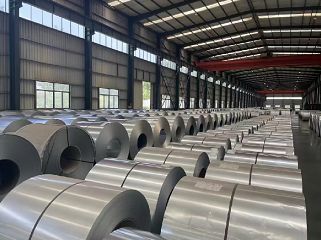

Qauv validation ua ntej pawg ntau lawm
Peb muab cov qauv dawb rau kev kuaj xyuas zoo, tso cai rau koj tso cov xaj xaj tsuas yog tom qab kev pom zoo. Peb xyuas kom meej qhov sib xws los ntawm cov qauv mus rau cov khoom loj los ntawm qhov ntsuas qhov tseeb thiab kev tsim pob tshab.
FAQ
Q: Dab tsi yog qhov zoo ntawm Inconel 718?
Q: Qhov kev kho cua sov zoo li cas Inconel 718 xav tau?
Q: Qhov siab tshaj plaws kev khiav hauj lwm kub yog dab tsi?
Q: Qhov txawv ntawm Inconel 625 yog dab tsi?
