Khoom nta
Siab -Tub kub Oxidation Resistance
Tsim cov yeeb yaj kiab oxide ntom ntom txawm tias qhov kub siab tshaj 1100 degree, tiv thaiv oxidation thiab carburization yaig, nrog rau kev pab cuam lub neej deb tshaj ntawm cov hlau tsis muaj steel.
Siab -Tub kub Corrosion Resistance
Qhia tau zoo tiv thaiv tawm tsam corrosive xws li cov roj chlorine qhuav, hydrogen chloride, thiab hydrofluoric acid, muaj peev xwm tiv taus corrosion nyob rau hauv ob qho tib si oxidizing thiab txo qhov chaw, thaum tseem muaj kev tiv thaiv zoo heev rau pitting corrosion thiab crevice corrosion.
Kev ruaj ntseg siab
Ua kom ruaj khov austenitic qauv ntawm chav tsev kub thiab qhov kub thiab txias, tsis yog -sib nqus, thiab tsis zoo li yuav dhau mus rau kev hloov pauv ntawm microstructural theem tom qab lub sijhawm ntev - kev pabcuam, nrog kev tuav ruaj khov ntawm qhov ntev thiab cov khoom.
Kev ua tau zoo
Muaj kev ua haujlwm txias thiab kub kub, thiab cov khoom siv vuam, thiab tuaj yeem ua tiav rau ntau hom ntawv xws li phaj, tuav, raj, thiab forgings kom tau raws li cov khoom siv sib txawv.
Technical Specifications
Tshuaj muaj pes tsawg leeg
|
Lub ntsiab |
Standard Requirements |
Nco tseg |
|
Ni |
Ntau dua lossis sib npaug li 72.0% |
Matrix, muab kev tiv thaiv corrosion thiab siab - kub lub zog |
|
Cr |
14.0 - 17.0% |
Muab cov antioxidant thiab corrosion kuj muaj peev xwm |
|
Fe |
6.0 - 10.0% |
Solid tov ntxiv zog, ruaj khov microstructure |
|
C |
Tsawg dua lossis sib npaug li 0.15% |
Tswj carbide nag lossis daus |
|
Mn |
Tsawg dua lossis sib npaug li 1.0% |
Deoxidizer, txhim kho kev ua haujlwm kub |
|
Si |
Tsawg dua los yog sib npaug li 0.5% |
Deoxidizer, txhim kho antioxidant zog |
|
Cu |
Tsawg dua los yog sib npaug li 0.5% |
Cov khoom seem |
|
S |
Tsawg dua lossis sib npaug li 0.015% |
Kev tswj nruj kom tsis txhob kub brittleness |
Lub cev muaj zog
|
Kev ua tau zoo |
Tus nqi / ntau yam |
Cov xwm txheej kuaj |
|
Ceev ceev |
8.47 g / cm³ |
Chav tsev kub (20 degree) |
|
Melting point |
1370 - 1425 degree |
Chav tsev kub (20 degree) |
|
Tshwj xeeb kub muaj peev xwm |
444 J/kg · K |
20 degree |
Mechanical Properties (Kev daws teeb meem Annealed Condition, Tus nqi zoo)
|
Kev ua tau zoo |
Yam nqi |
Kev siv tus qauv |
|
Tensile zog |
Ntau dua lossis sib npaug li 550 MPa |
ASTM B168 |
|
Yield zog |
Ntau dua lossis sib npaug li 240 MPa |
ASTM B168 |
|
Elongation |
Ntau dua lossis sib npaug li 30% |
ASTM B168 |
|
Hardness |
Tsawg dua lossis sib npaug li 90 HRB |
- |
High -kub Performance
Ntawm 700 degree, lub zog tensile tseem siab tshaj li ntawm 350 MPa. Ntawm 900 degree, lub zog tensile tseem siab tshaj li ntawm 120 MPa.
Ntev -lub sij hawm siv kub ntau: Rau oxidation/carbon penetration applications, qhov pom zoo ntev -lub sij hawm ua hauj lwm kub yog 700℃mus rau 1150℃.
Qhov siab tshaj qhov kub tsis sib haum: Txog 1177 degree.
Oxidation kuj: Hauv huab cua zoo li qub ntawm 1100 degree, oxidation tus nqi qis heev (feem ntau> 0.1 hli / xyoo).
Creep kuj: Ntawm 700-900℃thiab nyob rau hauv me ntsis kev ntxhov siab, nws pom zoo creep tsis kam tshaj feem ntau austenitic stainless hlau.
Daim ntawv thov teb
-
Thermocouple sheaths nyob rau hauv erosive atmospheres.
-
Kev tsim cov dioxide los ntawm chlorine gas method.
-
Vinyl chloride monomer ntau lawm: tiv thaiv cov roj chlorine, oxidation, thiab carbonization corrosion.
-
Kev tsim cov organic lossis inorganic chlorides thiab fluorides: tiv thaiv cov roj chlorine thiab fluorine gas corrosion.
-
Uranium oxidation hloov dua siab tshiab rau hexafluoride: tiv thaiv hydrogen chloride corrosion.
-
Nuclear reactors.
-
Kev tsim khoom thiab siv cov corrosive alkali hlau, tshwj xeeb tshaj yog nyob rau hauv ib puag ncig nrog sulfides.
-
Lub raj mis thiab cov khoom siv hauv cov cua sov kho cua sov, tshwj xeeb tshaj yog nyob rau hauv carburizing thiab nitriding atmospheres.
Customizable Material Forms
Peb txhawb tsim ntau yam yooj yim thiab tshwj xeeb cov duab raws li drawings los yog specifications.
|
Daim ntawv |

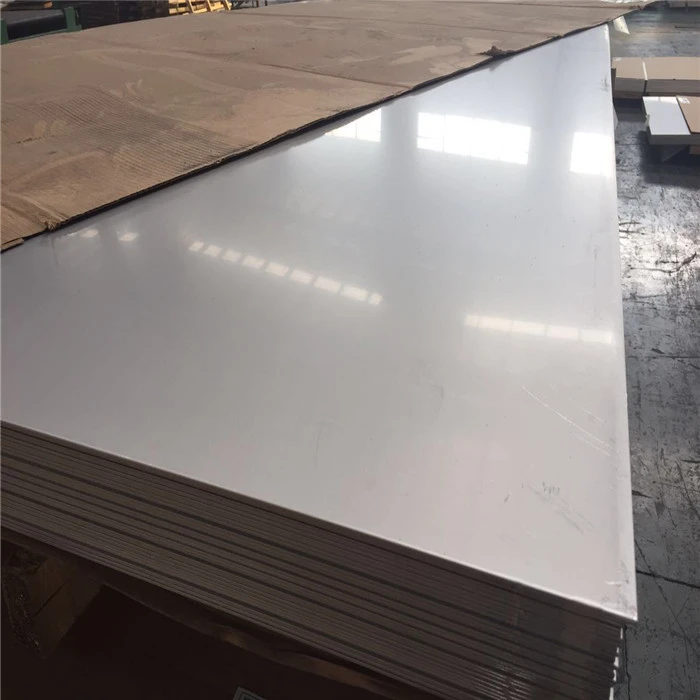

 Daim ntawv / nyias daim hlau
|

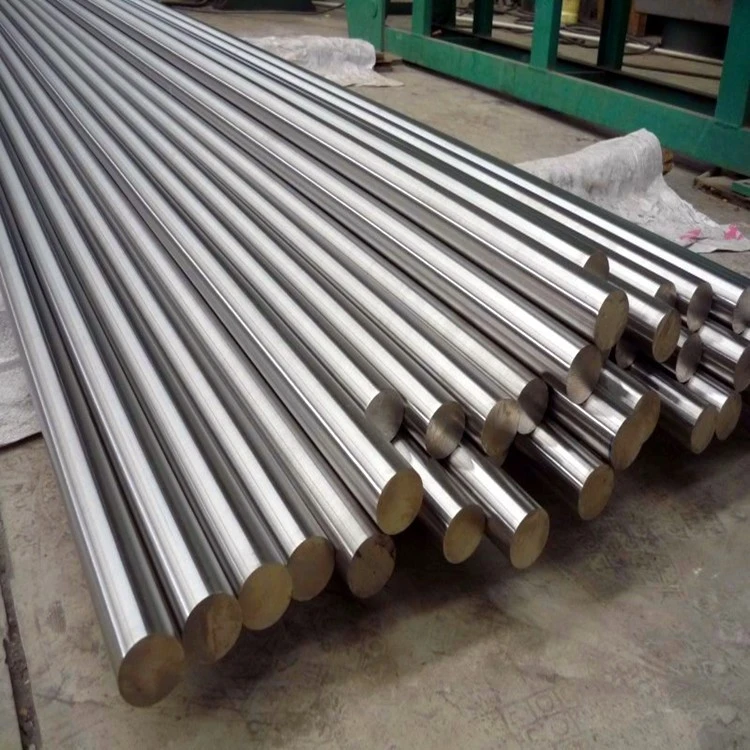

 Bar / puag ncig steel
|
 Cov yeeb nkab steel / cov khoom siv yeeb nkab
|
 Sawb / Sheet Coil
|
 Cov khoom siv hlau / hlua
|
|---|---|---|---|---|---|
|
Pa ntau yam |
Thickness: 0.5 - 100 hli |
Txoj kab uas hla Φ6-500mm |
Sab nraud txoj kab uas hla Φ10-300mm |
Thickness: 0.1-3.0 hli |
Txoj kab uas hla Φ0.5-10mm |
|
Kev kho kom haum |
Tshwj xeeb tuab / nyias dov, ultra- daim hlau dav; tshwj xeeb nto kho; tsau -ntev txiav |
Loj- loj forged tuav, tshwj xeeb- zoo li tus tuav; kev kho cua sov sib txawv ntawm ntau qib |
Loj- txoj kab uas hla, tuab- cov hlab ntsa; tshwj xeeb alloy muaj pes tsawg leeg; tube kawg ua (beveling, ruaj ntev) |
Cov xwm txheej sib txawv, kev kho cua sov tshwj xeeb, deg deg, electrolytic polishing, txheej lossis zaj duab xis tiv thaiv |
Tshwj xeeb nto, precision kos duab |
Vim Li Cas Los Ntawm Peb? - Trusted Engineering. Txhim khu kev xa khoom.
Tsis yog tus neeg muag khoom xwb, tab sis tus khub khoom siv koj tuaj yeem tso siab rau hauv Suav teb.
Vertically Integrated Production
Muaj 20,000㎡ qhov chaw nrog 10+ automated kab (8, 000+ tons / xyoo). Hauv - tsev cuab yeej & qhov chaw tuag ua rau muaj kev hloov kho sai thiab tswj tus nqi zoo - tsis muaj tus neeg nruab nrab kos npe.
Kev Tswjhwm nruj nruj ntawm txhua theem
Tag nrho traceability nyob rau hauv lub tseem ceeb QC checkpoints thoob plaws hauv ntau lawm . 100% raws li ASTM/ASME, EN, thiab GB qauv. Cov ntaub ntawv xeem cov ntaub ntawv muaj nyob nrog txhua qhov khoom xa tuaj.

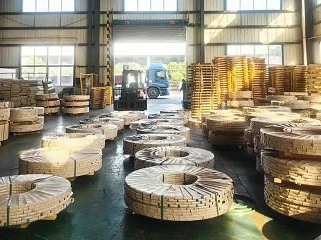

Txhim khu kev xa khoom & Export ntim
10+ xyoo xa tawm mus rau Tebchaws Europe, North America, Southeast Asia & Middle East nrog cov dej tsis zoo thiab tiv thaiv- xeb, ua ke nrog cov kev xaiv thauj khoom yooj yim kom muaj kev nyab xeeb thiab nyob rau - lub sijhawm tuaj txog.
Qauv validation ua ntej pawg ntau lawm
Peb muab cov qauv dawb rau kev kuaj xyuas zoo, tso cai rau koj tso cov xaj xaj tsuas yog tom qab kev pom zoo. Peb xyuas kom meej qhov sib xws los ntawm cov qauv mus rau cov khoom loj los ntawm qhov ntsuas qhov tseeb thiab kev tsim pob tshab.
FAQ
Q: Nws tuaj yeem siv tau pes tsawg xyoo nyob rau hauv qhov chaw kub siab -?
Q: Qhov siab tshaj plaws ua haujlwm kub yog dab tsi?
Q: Qhov txawv ntawm nws thiab Inconel 625 yog dab tsi?
Cim npe nrov: Tuam Tshoj inconel 600 manufacturers, lwm tus neeg, Hoobkas
