Khoom nta
Zoo heev - qhov kub thiab txias tsis kam (cov ntsiab lus zoo)
Lub ntsiab kom zoo dua ntawm TA15 yog nyob rau hauv nws zoo heev high -kub kev ua tau zoo, uas yog nws tshwj xeeb tshaj plaws feature distinguishes nws los ntawm Gr5 (TC4) thiab Gr9 (TA18). A 6.5% txhuas cov ntsiab lus muab cov khoom muaj zog -cov tshuaj tiv thaiv kom muaj zog. Lub 2% zirconium ntxiv txhim khu lub alloy qhov siab - qhov kub thiab txias zog los ntawm cov khoom siv ntxiv zog. Qhov sib ntxiv ntawm 1% molybdenum thiab 1% vanadium, nyob rau hauv qhov tsim nyog, txhim kho cov hlau tsis muaj zog thiab thermal stability thaum tswj kev ruaj ntseg ntawm nws nyob ze - microstructure. TA15 tuav lub zog tensile siab thiab nkag siab ntawm 500 degree, nrog rau lub sijhawm ua haujlwm ntev tshaj li ntawm Gr5 (400 degree) thiab Gr9 (350 degree). Qhov no ua rau nws yog ib qho khoom siv zoo tshaj plaws rau siab - qhov kub thiab txias Cheebtsam hauv cov tshuab dav hlau.
Kev ruaj ntseg zoo heev
TA15 yog ze rau - titanium alloy. Vim tias qhov qis ntxiv ntawm molybdenum thiab vanadium (kwv yees li 1% txhua), nws muaj cov theem me me, uas ua rau muaj kev ruaj ntseg microstructural zoo nyob rau lub sijhawm ntev - kev pabcuam hauv qab 550 degree, tsis muaj qhov tseem ceeb coarsening ntawm theem lossis decomposition ntawm theem. Cov cuab yeej no zoo dua li ntawm + titanium alloys (xws li Gr5), ua rau kev ua haujlwm qeeb qeeb thiab kev ruaj ntseg zoo nyob rau hauv siab - kub ntev - cov kev pab cuam lub sij hawm. Nws yog vim li no tsim nyog rau cov khoom siv hauv aerospace uas yuav tsum tau ua kom ntev ntev - lub sij hawm cia siab rau thiab kwv yees lub neej ntev.
Kev ua haujlwm vuam zoo
TA15 muaj kev ua haujlwm zoo vuam. Tsis muaj kev ua kom sov ua ntej lossis tom qab- vuam cov cua sov yuav tsum tau ua thaum vuam, thiab cov khoom ntawm cov vuam sib txuas zoo ib yam li cov khoom siv hauv paus. Nws tuaj yeem txuas nrog ntau txoj hauv kev xws li TIG (Tungsten Inert Gas) vuam, plasma vuam, electron beam vuam, thiab laser vuam. Thaum lub sij hawm vuam, cov roj inert (argon) yuav tsum tau siv kom txaus los tiv thaiv qhov kub ntawm - kub oxidation paug.
Zoo corrosion kuj
Like all titanium alloys, TA15 relies on a dense, stable, and self-healing TiO₂ oxide film that forms spontaneously on its surface, exhibiting excellent corrosion resistance in atmospheric environments, seawater, chloride solutions, and most acidic media. Nws cov kev tiv thaiv corrosion yog piv rau Gr5, ua rau nws tsim nyog rau kev siv xws li marine ib puag ncig thiab tshuaj lom neeg.
Cov khoom kub ua haujlwm zoo
TA15 muaj cov khoom kub ua haujlwm zoo thiab tuaj yeem tsim los ntawm cov txheej txheem ua haujlwm kub xws li forging, kub dov, thiab kub extrusion nyob rau hauv qhov kub ntawm 900-1050 degree. Annealing tuaj yeem ua tau tom qab ua haujlwm kub kom ua tiav qhov kev pom zoo ua ke ntawm microstructure thiab cov khoom siv kho tshuab.
Kev ua tau zoo qaug zog thiab tawg toughness
Ua kom pom kev qaug zog zoo heev thiab kev ua kom tawg, tshwj xeeb tshaj yog nyob rau hauv bimodal thiab pob tawb -weave microstructures. Nws lub siab -kev ua haujlwm qaug zog thiab qaug zog tawg kev loj hlob tsis zoo yog qhov zoo tshaj rau cov nyob ze -alpha titanium alloys. Los ntawm kev tswj hwm microstructure, qhov sib npaug ntawm qhov sib npaug ntawm lub zog, plasticity, thiab tawg toughness tuaj yeem ua tiav, ua tau raws li kev tsim kev puas tsuaj rau kev tsim qauv rau cov khoom siv hauv aerospace.
Technical Specifications
Tshuaj muaj pes tsawg leeg (GOST 19807-91 / GB / T 2965)
|
Element |
Standard Requirements |
Sau ntawv |
|
Ti |
Cov khoom seem (Matrix) |
Matrix ntsiab, muab lub teeb matrix, zoo heev corrosion kuj, thiab lub koom haum stability |
|
Al |
5.5 - 7.0% |
Core -cov ntsiab lus ruaj khov uas txhim kho chav tsev kub thiab siab - qhov kub thiab txias |
|
Zr |
1.5 - 2.5% |
Kev daws teeb meem tsis zoo-cov ntsiab lus muaj zog uas txhim kho siab - qhov kub thiab txias tsis kam |
|
Mo |
0.5 - 1.5% |
Beta- cov khoom ruaj khov, thaum ntxiv me me, txhim kho siab - qhov kub thiab txias tsis kam. |
|
V |
0.8 - 1.5% |
Beta-cov khoom ruaj khov, thaum ntxiv me me, txhim kho lub zog- qhov sib npaug |
|
Fe |
Tsawg dua lossis sib npaug li 0.25% |
Kev tswj nruj nruj kom tsis txhob cuam tshuam kev tiv thaiv corrosion thiab siab -kev ua haujlwm kub |
|
O |
Tsawg dua lossis sib npaug li 0.15% |
Gap ntsiab, uas cuam tshuam rau qhov sib npaug ntawm lub zog thiab plasticity |
|
C |
Tsawg dua lossis sib npaug li 0.10% |
Kev tswj nruj; ntau ntau ntau yuav txo plasticity |
|
N |
Tsawg dua lossis sib npaug li 0.05% |
Cov ntsiab lus sib txawv, yog tias siab dhau, yuav txo qhov toughness |
|
H |
Tsawg dua lossis sib npaug li 0.015% |
Kev tswj nruj ntawm cov ntsiab lus hydrogen los tiv thaiv hydrogen embrittlement |
|
Lwm cov ntsiab lus (ib leeg) |
Tsawg dua lossis sib npaug li 0.10% |
- |
|
Lwm yam khoom (tag nrho) |
Tsawg dua lossis sib npaug li 0.30% |
- |
Lub cev muaj zog
|
Khoom |
Tus nqi / Ntau |
Kev Xeem |
|
Qhov ntom |
4.45 g / cm³ |
Chav ntsuas kub (20 degree) |
|
Melting Point |
≈ 1630 degree |
- |
|
Coefficient ntawm thermal expansion (20-400 degree) |
9.0 × 10⁻⁶ /K |
- |
|
Elastic Modulus (Young's Modulus) |
Qhov siab tshaj plaws ntawm qhov siab tshaj plaws yog 115 GPa |
Chav ntsuas kub |
|
Thermal conductivity (20 degree) |
≈ 7.0 W/(m·K) |
- |
|
Kev tiv thaiv |
≈ 1.70 μΩ·m |
- |
|
Poisson tus ratio |
≈ 0.31 |
Chav ntsuas kub |
|
Magnetism |
Tsis yog-magnetic |
Tag nrho cov titanium alloys tsis yog - cov khoom sib nqus |
Mechanical Properties (Annealed Condition, Tus nqi zoo, GOST 19807-91 / GB / T 2965)
|
Khoom |
Tus nqi |
Specification |
|
Tensile zog |
Ntau dua lossis sib npaug li 885 MPa |
GB / T 2965 / GOST 19807-91 |
|
Yield zog (0.2% Offset) |
Ntau dua lossis sib npaug li 780 MPa |
GB / T 2965 / GOST 19807-91 |
|
Elongation |
Ntau dua lossis sib npaug li 10% |
GB / T 2965 / GOST 19807-91 |
|
Kev txo qis ntawm - ntu ntu |
Ntau dua lossis sib npaug li 25% |
- |
|
Hardness (Brinell) |
290 - 340 HB |
- |
|
Impact Toughness (Charpy V-notch) |
25 - 45 J |
- |
Lus Cim: Lub zog ntawm TA15 yog piv rau Gr5 (TC4), tab sis nws qhov kev ua haujlwm siab - qhov kub thiab txias (ntawm 500 degree) yog qhov zoo tshaj rau Gr5's (ntawm 400℃). Nws yog haum rau aerospace structural Cheebtsam uas yuav tsum tau siab dua rau nruab nrab - mus rau - kub zog. Cov khoom tshwj xeeb tuaj yeem hloov kho raws li tus neeg siv khoom- qhia txog kev kho cua sov (annealing, ob chav annealing).
Corrosion Resistance (Tswj tus nqi)
|
Nruab nrab |
Nco ntsoov |
Kub |
Corrosion tus nqi (mm / xyoo) |
Kev ntsuas |
|
Dej hiav txwv |
- |
Chav tsev kub kom kub |
Tsis quav ntsej (＜0.01) |
Zoo heev |
|
Atmospheric ib puag ncig |
- |
Chav ntsuas kub |
Tsis quav ntsej |
Zoo heev |
|
Nitric acid (HNO ₃) |
10-40% |
Chav ntsuas kub |
＜0.05 |
Zoo heev |
|
Sulfuric acid (H₂SO₄) |
Tsawg dua lossis sib npaug li 5% |
Chav ntsuas kub |
＜0.1 |
Zoo |
|
Hydrochloric acid (HCl) |
Tsawg dua lossis sib npaug li 3% |
Chav ntsuas kub |
＜0.1 |
Zoo |
|
Sodium hydroxide (NaOH) |
10-50% |
Chav ntsuas kub |
＜0.05 |
Zoo heev |
|
Organic acids (xws li acetic acid, citric acid, thiab lwm yam) |
- |
Chav ntsuas kub |
＜0.1 |
Zoo |
Nco tseg: Titanium alloys tsis muaj corrosion kuj nyob rau hauv siab - kub concentrated sulfuric acid, hydrofluoric acid, thiab lwm yam xov xwm. Kev tiv thaiv corrosion ntawm TA15 yog piv rau Gr5 (TC4). Rau kev xaiv cov khoom tshwj xeeb, thov muab cov ncauj lus kom ntxaws txog kev ua haujlwm, thiab peb tuaj yeem pab nrog kev ntsuam xyuas corrosion.
High -kev ua haujlwm kub
TA15 ua pov thawj zoo heev - qhov kub thiab txias tuav nyob rau hauv ntau qhov kub thiab txias. Cov hauv qab no yog cov txiaj ntsig zoo rau tensile lub zog ua haujlwm ntawm qhov kub thiab txias (annealed mob):
|
Kub |
Tensile zog (MPa) |
Kev ua tau zoo tuav tus nqi |
Nco tseg |
|
Chav ntsuas kub (20 degree) |
Ntau dua lossis sib npaug rau 885 |
100% |
- |
|
350 degree |
≈ 780 |
Ntau dua lossis sib npaug li 88% |
Kev ua tau zoo heev khaws cia tus nqi |
|
450 degree |
≈ 680 |
Ntau dua lossis sib npaug li 77% |
- |
|
500 degree |
≈ 600 |
Ntau dua lossis sib npaug li 68% |
Core Advantage Temperature Range |
|
550 degree |
≈ 520 |
Ntau dua lossis sib npaug li 59% |
Luv - lub sij hawm raug |
Ntev -lub sij hawm thermal stability thiab creep kev ua tau zoo:
TA15 nthuav tawm zoo heev microstructural stability thaum lub sij hawm ntev - kev pab cuam ntawm qhov kub thiab txias tsawg dua los yog sib npaug li 500 degree, tsis muaj coarsening tseem ceeb ntawm theem los yog decomposition ntawm theem, thiab muaj superior creep kuj. Vim tias cov qib qis ntxiv ntawm molybdenum thiab vanadium (kwv yees li 1% txhua), cov ntsiab lus theem qis dua thiab ruaj khov, ua rau lub sijhawm zoo dua -lub sij hawm thermal stability dua + titanium alloys (xws li Gr5). Cov yam ntxwv no ua rau nws muaj txiaj ntsig zoo hauv cov ntawv thov uas xav tau ntev - lub sijhawm kev ntseeg siab, xws li siab - qhov kub thiab txias hauv cov tshuab dav hlau.
Antioxidant kev ua haujlwm:
TA15 tuaj yeem tsim cov yeeb yaj kiab oxide tiv thaiv ntawm qhov kub hauv qab 550 degree. Nyob rau lub sij hawm ntev - raug ntawm 500-550 degree, nws oxidation kuj zoo dua Gr5. Txawm li cas los xij, rau kev pab cuam mus sij hawm ntev ntawm qhov kub siab dua, cov txheej txheem tiv thaiv tuaj yeem siv los yog titanium alloys nrog cov ntsiab lus aluminium siab dua tuaj yeem txiav txim siab.
Kub ua hauj lwm thiab kev kho cua sov
Kub ua hauj lwm yam khoom:
TA15 muaj cov khoom kub ua haujlwm zoo thiab tuaj yeem ua haujlwm kub thiab tsim nyob rau hauv qhov ntsuas kub hauv qab no:
|
Txoj kev ua haujlwm kub |
Pom zoo qhov kub thiab txias |
Nco tseg |
|
Forge |
950-1050 degree |
Pom zoo kawg forging kub yog siab dua los yog sib npaug rau 850 degree |
|
Kub Rolling |
900-1000 degree |
- |
|
Kub extrusion |
950-1050 degree |
- |
Txoj Cai Kho Mob:
Kev kho cua sov ntawm TA15 feem ntau yog siv los ua kom zoo dua qhov sib tw ntawm microstructure thiab kev ua haujlwm, nrog rau cov lus qhia tshwj xeeb raws li hauv qab no:
1. Annealing (qhov feem ntau siv cov xwm txheej kom ua tiav cov khoom zoo tag nrho): Kub rau 750-850 degree, tuav rau 1-2 teev, ces cua txias. Qhov no ua rau muaj equiaxed lossis bimodal microstructure nrog cov khoom zoo tag nrho.
2. Ob chav Annealing (siv los txhim kho creep thiab siab -kub endurance zog):
Thawj theem: Kub rau 850-950 degree, cua txias;
Qhov thib ob theem: Kub rau 700-800 degree, cua txias.
Qhov no ua rau bimodal lossis pob tawb -weave microstructure nrog superior siab - kub ua haujlwm.
Lus Cim: Kev kho cua sov yuav tsum tau ua nyob rau hauv lub tshuab nqus tsev los yog inert gas tiv thaiv kom tsis txhob oxidation nto thiab paug.
Siv tau Media
1. Atmospheric ib puag ncig: zoo heev corrosion kuj, tsis xav tau kev tiv thaiv nto txheej.
2. Seawater thiab chloride daws: Zoo pitting thiab crevice corrosion kuj.
3. Oxidizing acids: xws li nitric acid (nruab nrab mus rau qis concentration ntawm chav tsev kub), zoo heev corrosion kuj.
4. Tsis muaj zog txo cov kua qaub: xws li dilute sulfuric acid (tsawg dua lossis sib npaug li 5%), dilute hydrochloric acid (tsawg dua lossis sib npaug li 3%), tuaj yeem tiv taus ntawm chav tsev kub.
5. Organic acids: Acetic acid, oxalic acid, citric acid, thiab lwm yam.
6. Alkaline daws: Sodium hydroxide, potassium hydroxide, thiab lwm yam. (zoo corrosion kuj ntawm chav tsev kub).
7. Aviation kerosene, hydraulic roj: Zoo compatibility.
8. Siab -kub cua, roj cua (tsawg dua lossis sib npaug li 500℃).
Lus Cim: TA15 tsis tiv taus cov xov xwm corrosive xws li hydrofluoric acid, siab - kub concentrated sulfuric acid, thiab concentrated hydrochloric acid.
TA15 (Ti-6.5Al-2Zr-1Mo-1V) yog tsim rau cov ntawv thov uas xav tau kev sib xyaw ua ke ntawm nruab nrab-rau-siab kub lub zog, zoo thermal stability, thiab corrosion kuj. Nws raug pom zoo siv rau hauv cov teb hauv qab no:
Daim ntawv thov teb
-
Aerospace (Core Application Areas)
Aero- cav casings (compressor casings, intermediate casings), cav hniav, aircraft thav duab, tis tav, missile casings, foob pob ua ntxaij structural Cheebtsam, siab - kub fasteners, tshav kub shields. -
Aerospace Siab -Tub Piping
Aero- cav los ntshav cua piping, ib puag ncig tswj system siab -kub piping, cav nacelle structural Cheebtsam. -
National Defense thiab Tub Rog Kev Lag Luam
Missile rudder structural Cheebtsam, aircraft daim tawv nqaij, radar kav hlau txais xov structural Cheebtsam, unmanned aerial tsheb structural Cheebtsam. -
Automotive thiab High -Performance Industrial
High-kev ua tau zoo ntawm lub cav tso hluav taws xob, cov khoom siv turbocharger, siab - kub sensor sheaths, lub teeb yuag kis tau tus mob. -
Petrochemical thiab Zog
Nruab nrab-rau-siab-kub corrosion-cov kav dej tiv taus, cov khoom siv hluav taws xob sib txuas, cov khoom siv hluav taws xob sab hauv, cov khoom siv valve (tsawg dua lossis sib npaug li 500℃). -
Marine Engineering
Nkoj seawater piping systems, sib sib zog nqus -cov khoom siv hauv hiav txwv cov khoom siv, seawater heat exchangers.
Kev xa khoom thiab Customization
Peb muab cov kev daws teeb meem hloov tau yooj yim thiab txhim khu kev qha kom ntseeg tau tias koj tau txais TA15 (Ti-6.5Al-2Zr-1Mo-1V) cov ntaub ntawv uas haum rau koj qhov kev xav tau.
|
Daim ntawv |

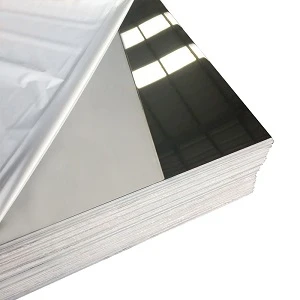

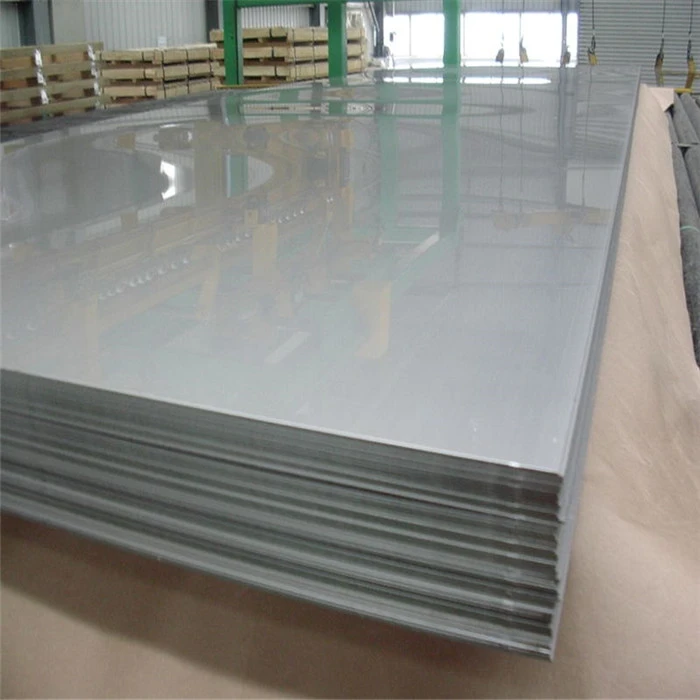

 Ntawv / phaj
|

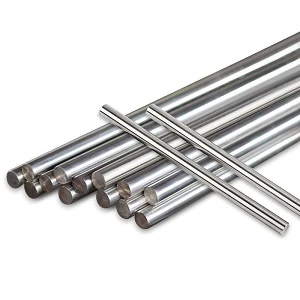

 Bar / Qws
|

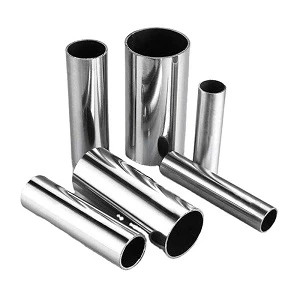

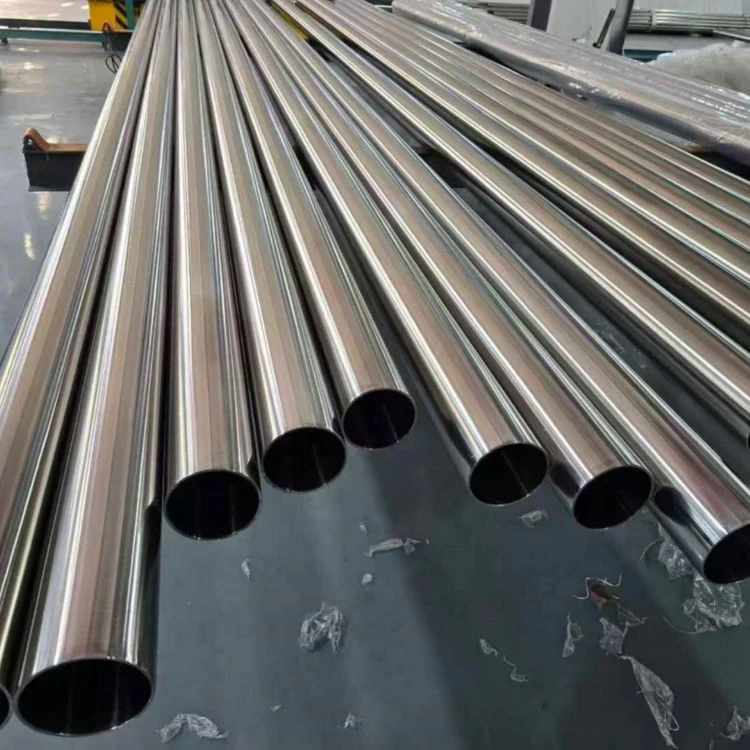

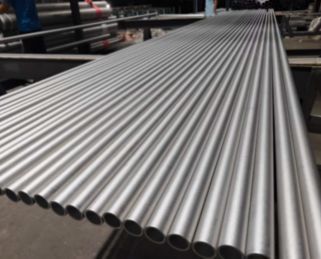

 Tube / Tube
|

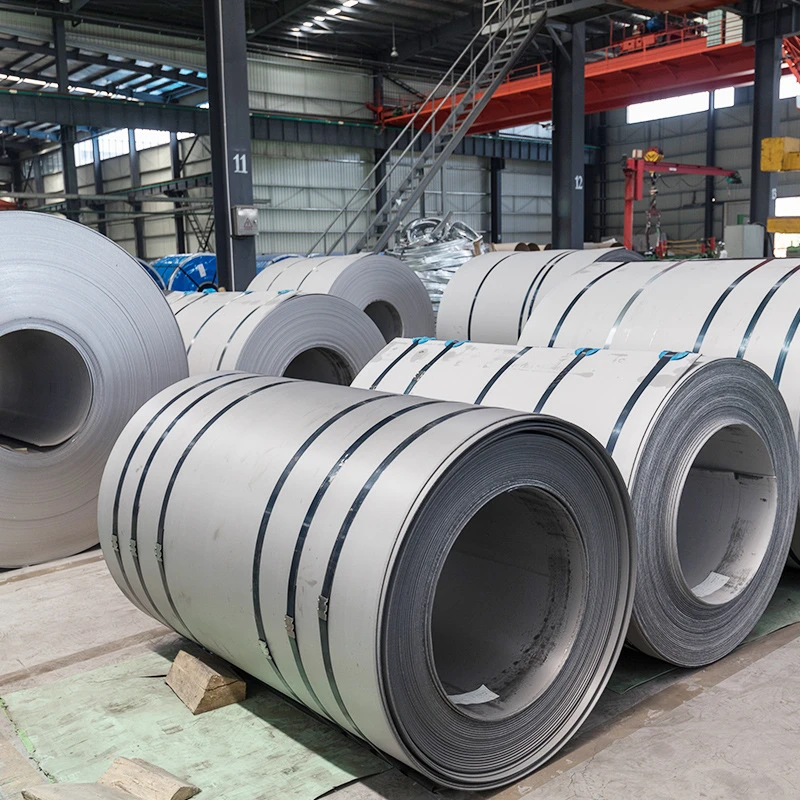

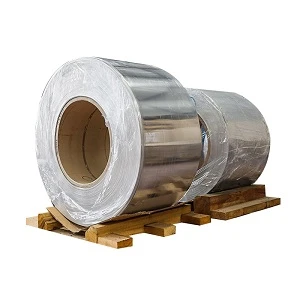

 Sawb / Sheet Coil
|

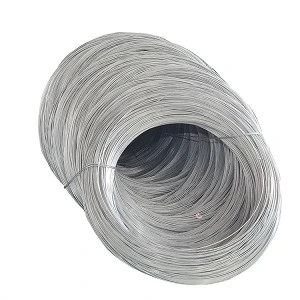

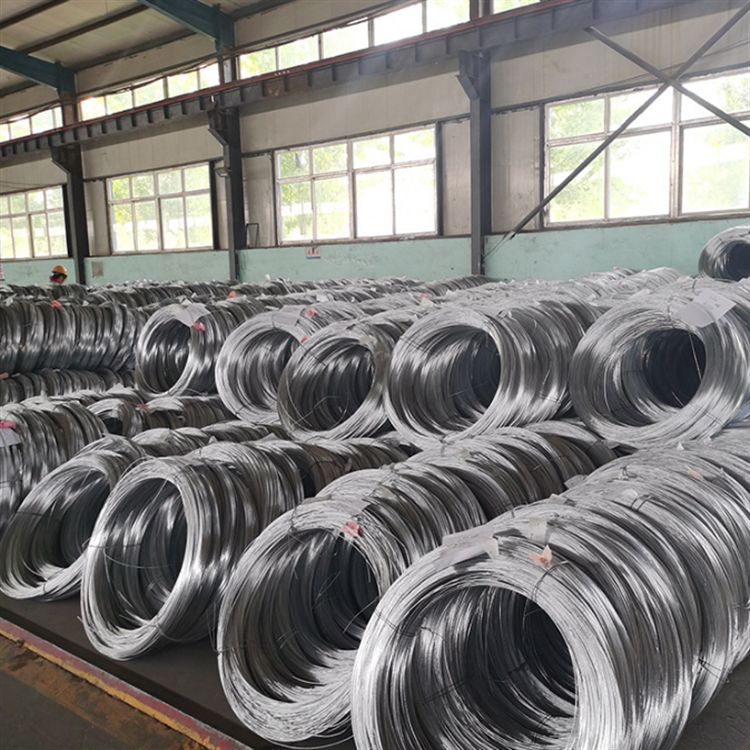

 Hlau / Hlau Rod
|
|---|---|---|---|---|---|
|
Pauv ntau yam |
Thickness: 0.5 - 100 hli |
Txoj kab uas hla Φ6-500mm |
Sab nraud txoj kab uas hla Φ10-300mm |
Thickness: 0.1-3.0 hli |
Txoj kab uas hla Φ0.5-10mm |
|
Customization Muaj peev xwm |
Kub- dov daim hlau, ultra- daim hlau nyias (pib los ntawm 0.1mm), ruaj -ntev txiav, tshwj xeeb nto kev kho mob (pickling, sandblasting, polishing) |
Forged tuav, kub- dov tuav, polished tuav, zoo li tus tuav, thiab sib txawv kev kho cua sov tej yam kev mob (annealing, ob chav annealing) |
Seamless raj / welded raj, precision raj cov ntaub ntawv, loj -inch tuab-walled hlab, raj kawg ua (beveling, tsau ntev), tshwj xeeb lengths |
Cov xwm txheej sib txawv, kev kho cua sov tshwj xeeb (kev kho kom ruaj khov, tswj qhov loj me), cov kua qaub- ntxuav qhov chaw, electrolytic polishing, txheej, lossis cov yeeb yaj kiab tiv thaiv tshwj xeeb |
Precision drawing, vuam muab tub lim, tshwj xeeb nto kho |
Vim li cas thiaj xaiv peb? - Txhim khu kev qha Engineering Technology. Dependable xa khoom.
Peb tsis yog ib tus neeg muag khoom xwb, tab sis yog ib tus neeg koom tes nrog cov ntaub ntawv ntseeg siab rau koj hauv Suav teb.

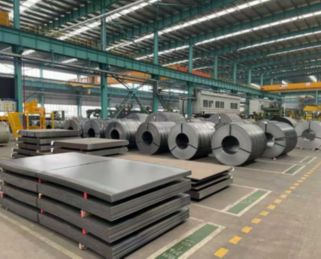

Vertically Integrated Production
Muaj 20,000㎡ qhov chaw nrog 10+ automated kab (8, 000+ tons / xyoo). Hauv - tsev cuab yeej & qhov chaw tuag ua rau muaj kev hloov kho sai thiab tswj tus nqi zoo - tsis muaj tus neeg nruab nrab kos npe.
Kev Tswjhwm nruj nruj ntawm txhua theem

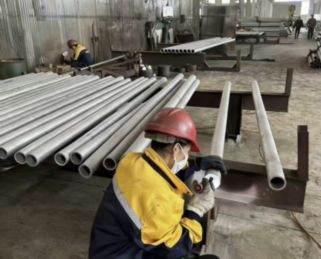

Tag nrho traceability nyob rau hauv lub tseem ceeb QC checkpoints thoob plaws hauv ntau lawm . 100% raws li ASTM/ASME, EN, thiab GB qauv. Cov ntaub ntawv xeem cov ntaub ntawv muaj nyob nrog txhua qhov khoom xa tuaj.

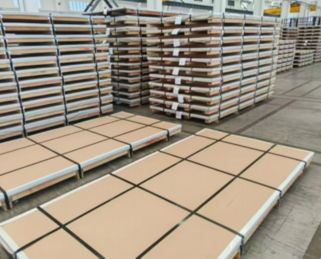

Txhim khu kev xa khoom & Export ntim
10+ xyoo xa tawm mus rau Tebchaws Europe, North America, Southeast Asia & Middle East nrog cov dej tsis muaj dej thiab tiv thaiv- xeb, ua ke nrog cov kev xaiv thauj khoom yooj yim kom muaj kev nyab xeeb thiab nyob rau - lub sijhawm tuaj txog.
Qauv validation ua ntej pawg ntau lawm
Peb muab cov qauv dawb rau kev kuaj xyuas zoo, tso cai rau koj tso cov xaj xaj tsuas yog tom qab kev pom zoo. Peb xyuas kom meej qhov sib xws los ntawm cov qauv mus rau cov khoom loj los ntawm qhov ntsuas qhov tseeb thiab kev tsim pob tshab.
FAQ
Q: Dab tsi yog qhov zoo ntawm TA15?
Q: Qhov txawv ntawm TA15 thiab Gr5 (TC4) yog dab tsi? Yuav xaiv li cas?
Q: Qhov txawv ntawm TA15 thiab Gr9 (TA18) yog dab tsi? Yuav xaiv li cas?
Q: Qhov siab tshaj plaws ua haujlwm kub ntawm TA15 yog dab tsi?
Q: Qhov kev ua tau zoo ntawm TA15 yog dab tsi?
Q: Puas tuaj yeem TA15 hloov Gr5?
