Khoom nta

Lub zog tshwj xeeb zoo heev (core kom zoo dua)

Qhov ceev ntawm Ti-6Al-4V tsuas yog 4.43 g / cm³ (kwv yees li 56% ntawm cov hlau), nrog lub zog tensile nyob rau hauv lub annealed mob ntawm ntau tshaj los yog sib npaug rau 895 MPa thiab ntau tshaj los yog sib npaug rau 1100 MPa nyob rau hauv cov tshuaj{{14} mob thiab kho. Nws lub zog tshwj xeeb (kwv yees li 200-250 kN·m / kg) deb tshaj li ntawm 304 stainless hlau (≈75 kN·m / kg), aluminium alloys (≈150 kN·m / kg), thiab feem ntau cov nickel-based alloys, ua rau nws nyiam cov khoom siv rau lub teeb yuag. Cov cuab yeej no ua rau nws tsis tuaj yeem hloov pauv hauv qhov hnyav-sensitive daim ntawv thov xws li cov khoom siv hauv aerospace, aerospace fasteners, kev ua haujlwm siab sib tw tsheb sib txuas, thiab cov tsheb kauj vab hwm.

Zoo heev corrosion kuj

Ti-6Al-4V muaj kev tiv thaiv zoo heev rau cov corrosion tsis zoo thiab pitting hauv dej hiav txwv, cov tshuaj chloride, feem ntau cov organic acids, thiab tsis muaj zog txo cov acids vim qhov ntom ntom, ruaj khov, thiab kho tus kheej TiO₂ oxide zaj duab xis tsim spontaneously ntawm nws qhov chaw. Nws cov corrosion kuj nyob rau hauv dej hiav txwv yog deb tshaj ntawm stainless hlau thiab tooj liab alloys, uas yuav luag tsis muaj corrosion tshwm sim nyob rau hauv marine txaws thiab tidal zones. Cov hlau kuj tseem qhia tau hais tias muaj kev tiv thaiv zoo rau kev ntxhov siab corrosion cracking (SCC), ua rau nws yog ib qho khoom siv zoo tshaj plaws rau lub nkoj propellers, seawater heat exchangers, thiab cov cuab yeej sib sib zog nqus dej hiav txwv. Tsis tas li ntawd, nws qhia tau tshwj xeeb corrosion kuj nyob rau hauv oxidizing media xws li nitric acid thiab moist chlorine gas.

Zoo nruab nrab-kub kev ua haujlwm thiab thermal stability

Ti-6Al-4V tuaj yeem tswj hwm nws cov microstructural stability thiab txhua yam khoom ntawm qhov ntev -lub sijhawm ua haujlwm kub txog 400℃. Tsis pub dhau 300-400℃ntau yam, nws nthuav tawm cov kev nkag siab zoo dua thiab siab - kub lub zog piv rau feem ntau cov txhuas thiab magnesium alloys, tsis muaj qhov tseem ceeb ntawm kev hloov pauv lossis kev hloov pauv ntawm nws cov qauv. Nws tuaj yeem tiv taus lub sijhawm luv luv kom siab li 500-550 degree, ua rau nws haum rau nruab nrab-kub cov txheej txheem xws li compressor disks thiab cov hniav hauv cov tshuab dav hlau, cov tawv nqaij ntawm cov tsheb ceev, thiab cov tshuab tso tsheb.

Biocompatibility zoo heev thiab kev kho mob - ntawv pov thawj qib

Ti-6Al-4V tsis yog- tshuaj lom thiab tsis yog{11}} ua xua, nrog rau cov cellular affinity zoo heev thiab muaj peev xwm osteointegration. Nws elastic modulus (kwv yees li 110 GPa) yog ze rau ntawm tib neeg cov pob txha (kwv yees li 10-30 GPa) dua li stainless hlau (kwv yees li 200 GPa) thiab cobalt-chromium alloys (kwv yees li 230 GPa), zoo mitigating lub 'kev nyuaj siab shielding' nyhuv. Cov hlau no tau siv dav hauv cov khoom siv kho mob qib siab xws li lub duav femoral stems, lub hauv caug sib koom ua ke, kev cog hniav, thiab cov leeg txha caj qaum, ua raws li ASTM F136 thiab ISO 5832-3 cov qauv rau kev cog hniav phais.

Kev ua tau zoo qaug zog thiab tawg toughness

Ti-6Al-4V muaj kev tiv thaiv zoo heev rau kev qaug zog tawg pib thiab nthuav tawm, tshwj xeeb hauv nws cov txheej txheem annealed equiaxed microstructure. Nws lub voj voog kev qaug zog siab (kwv yees li 500-600 MPa ntawm 10⁷ cycles) yog qhov zoo tshaj rau cov txhuas thiab magnesium alloys. Los ntawm kev tswj hwm microstructure (xws li bimodal thiab pob tawb-weave), qhov sib npaug ntawm qhov sib npaug ntawm lub zog, ductility, thiab tawg toughness tuaj yeem ua tiav kom tau raws li kev tsim kev puas tsuaj rau kev tsim qauv raws li kev ua haujlwm sib txawv. Cov cuab yeej no ua rau nws nyiam cov khoom siv rau kev qaug zog tseem ceeb xws li turbine disks, fuselage fasteners, thiab tsaws iav qhov chaw hauv cov tshuab dav hlau.

Zoo machining thiab vuam zog

Ti-6Al-4V muaj kev ua haujlwm zoo thermal ua haujlwm thiab vuam, tso cai rau nws tsim los ntawm txoj kev xws li forging, dov, extrusion, thiab spin forming. Nws tuaj yeem koom nrog siv cov tswv yim xws li TIG vuam, MIG vuam, electron beam vuam, thiab laser vuam. Thaum lub sij hawm vuam, inert gases (argon) yuav tsum tau siv dav rau kev tiv thaiv kom tsis txhob embrittlement tshwm sim los ntawm kev cuam tshuam nrog oxygen, nitrogen, thiab hydrogen ntawm qhov kub thiab txias. Lub alloy kuj tseem tsim nyog rau cov pa machining cov haujlwm xws li tig, milling, thiab drilling; nws raug pom zoo kom siv cov cuab yeej carbide thiab xyuas kom muaj cua txias txaus los tswj cov cua sov thiab cov cuab yeej hnav. Rau precision Cheebtsam, high-precision forming yuav ua tau los ntawm hluav taws xob paug machining (EDM) thiab electrochemical machining (ECM).

Technical Specifications

Tshuaj muaj pes tsawg leeg (ASTM B348 / ASTM F136 / GB / T 2965)

Lub ntsiab	Standard Requirements	Sau ntawv
Ti	Cov khoom seem (Matrix)	Matrix cov ntsiab lus uas muab lub teeb matrix, zoo heev corrosion kuj, thiab biocompatibility
Al	5.50 - 6.75%	Alpha-theem ruaj khov cov ntsiab lus uas txhim kho chav tsev kub thiab siab - qhov kub thiab txias thaum txo qhov ceev
V	3.50 - 4.50%	Beta{0}}theem ruaj khov cov ntsiab lus, kho cov nplej, txhim kho hardenability thiab lub zog- ductility tshuav
Fe	Tsawg dua lossis sib npaug li 0.40% (qib kho mob Tsawg dua lossis sib npaug li 0.25%)	nruj me ntsis tswj kom tsis txhob tsim ntawm brittle intermetallic tebchaw thiab txo corrosion kuj
O	Tsawg dua lossis sib npaug li 0.20% (qib kho mob Tsawg dua lossis sib npaug li 0.13%)	Gap ntsiab, uas cuam tshuam rau qhov sib npaug ntawm lub zog thiab plasticity
C	Tsawg dua lossis sib npaug li 0.08%	Kev tswj nruj yog tsim nyog; ntau ntau ntau yuav txo ductility thiab toughness.
N	Tsawg dua lossis sib npaug li 0.05%	Cov ntsiab lus sib txawv, yog tias siab dhau, yuav txo qhov toughness
H	Tsawg dua lossis sib npaug li 0.015%	Kev tswj nruj ntawm cov ntsiab lus hydrogen los tiv thaiv hydrogen embrittlement
Lwm cov ntsiab lus (ib leeg)	Tsawg dua lossis sib npaug li 0.10%	-
Lwm yam khoom (tag nrho)	Tsawg dua lossis sib npaug li 0.40%	-

Lub cev muaj zog

Khoom	Tus nqi / Ntau	Kev Xeem
Qhov ntom	4.43 g / cm³	Chav ntsuas kub (20 degree)
Melting Point	1604 - 1660 degree	-
Coefficient ntawm thermal expansion (20-400℃)	8.6 × 10⁻⁶ /K	-
Elastic Modulus (Young's Modulus)	110 - 120 GPa	Chav ntsuas kub
Thermal conductivity (20 degree)	6.7 - 7.5 W/(m·K)	-
Kev tiv thaiv	1.60 - 1.80 μΩ·m	-
Poisson tus ratio	≈ 0.31	Chav ntsuas kub
Magnetism	Tsis yog -magnetic	Tag nrho cov titanium alloys tsis yog - cov khoom sib nqus

Mechanical Properties (Tswj tus nqi, ASTM B348 / GB / T 2965)

Kev ua tau zoo	Hom annealed xeev	Cov txiaj ntsig zoo rau kev daws teeb meem - kho thiab hnub nyoog (STA) mob	Cov qauv kev coj ua
Tensile zog	Ntau dua lossis sib npaug li 895 MPa	Ntau dua lossis sib npaug li 1100 MPa	Txheem: ASTM B348 / GB / T 2965
Yield zog (0.2% offset)	Ntau dua lossis sib npaug li 828 MPa	Ntau dua lossis sib npaug li 1000 MPa	Txheem: ASTM B348 / GB / T 2965
Elongation	Ntau dua lossis sib npaug li 10%	Ntau dua lossis sib npaug li 6%	Txheem: ASTM B348 / GB / T 2965
Kev txo qis ntawm - ntu ntu	Ntau dua lossis sib npaug li 25%	Ntau dua lossis sib npaug li 15%	-
Hardness (Brinell)	300 - 350 HB	360 - 410 HB	-
Impact Toughness (Charpy V-notch)	15 - 25 J	10 - 18 J	-

Nco tseg: Cov khoom siv kho tshuab ntawm Ti-6Al-4V yog qhov nkag siab zoo rau nws cov kev kho cua sov thiab microstructure (equiaxed, bimodal, pob tawb-weave). Cov nqi tshwj xeeb tuaj yeem hloov kho raws li qib microstructural thiab cov qauv xav tau los ntawm cov neeg siv khoom. Cov khoom lag luam qib kho mob yuav tsum ua kom tau raws li cov txheej txheem nruj thiab kev ua haujlwm ntawm ASTM F136.

Corrosion Resistance (Tswj tus nqi)

Nruab nrab	Nco ntsoov	Kub	Corrosion tus nqi (mm / xyoo)	Kev ntsuas
Dej hiav txwv	-	Chav tsev kub kom kub	Tsis quav ntsej (＜0.01)	Zoo heev
Atmospheric ib puag ncig (nrog rau kev ua qias tuaj)	-	Chav ntsuas kub	Tsis quav ntsej	Zoo heev
Nitric acid (HNO ₃)	10-65%	Chav tsev kub rau 80 degree	＜0.05	Zoo heev
Sulfuric acid (H₂SO₄)	Tsawg dua los yog sib npaug li 10%	Chav ntsuas kub	＜0.1	Zoo
Hydrochloric acid (HCl)	Tsawg dua lossis sib npaug li 5%	Chav ntsuas kub	＜0.1	Zoo
Sodium hydroxide (NaOH)	10-50%	Chav ntsuas kub	＜0.05	Zoo heev
Organic acids (xws li acetic acid, citric acid, thiab lwm yam)	-	Chav ntsuas kub	＜0.1	Zoo
Cov roj chlorine ntub dej	-	Chav ntsuas kub	＜0.05	Zoo heev

Nco tseg: Titanium alloys tsis zoo corrosion kuj nyob rau hauv qhuav chlorine gas, siab - kub concentrated sulfuric acid (＞70%), hydrofluoric acid, thiab lwm yam xov xwm. Hauv cov qauv sib txawv, qhov kev pheej hmoo ntawm crevice corrosion yuav tsum tau soj ntsuam. Rau kev xaiv cov khoom tshwj xeeb, thov muab cov ncauj lus kom ntxaws txog kev ua haujlwm, thiab peb tuaj yeem pab nrog kev ntsuam xyuas corrosion.

High -kev ua haujlwm kub

Antioxidant Performance:

Ti-6Al-4V tuav lub zog siab ntawm qhov kub nruab nrab. Cov hauv qab no yog cov txiaj ntsig zoo rau tensile lub zog ua haujlwm ntawm qhov kub thiab txias (annealed mob):

Kub	Tensile zog (MPa)	Kev ua tau zoo tuav tus nqi
Chav tsev kub (20 degree)	Ntau dua lossis sib npaug li 895	100%
200 degree	≈ 800	Ntau dua lossis sib npaug li 89%
300 degree	≈ 700	Ntau dua lossis sib npaug li 78%
400 degree	≈ 550	Ntau dua lossis sib npaug li 61%
500 degree	≈ 350 (lub sij hawm luv- raug)	Ntau dua lossis sib npaug li 39%

Ntev -Lub sij hawm Thermal Stability thiab Microstructural Evolution:

Ti-6Al-4V nthuav tawm kev ruaj ntseg microstructural zoo heev thaum lub sij hawm ntev- kev pab cuam ntawm qhov kub thiab txias tsawg dua los yog sib npaug li 400 degree, tsis muaj kev hloov pauv tseem ceeb lossis nag lossis daus ntawm embrittling theem, ua rau muaj kev hloov pauv me me. Txawm li cas los xij, qhov ntev ntev ntawm qhov kub thiab txias> 450℃tuaj yeem ua rau -theem coarsening thiab -theem decomposition, ua rau txo qis hauv plasticity. Yog li ntawd, ntev - siv lub sij hawm siab tshaj qhov kub no tsis pom zoo. Rau cov ntawv thov uas yuav tsum tau ua haujlwm ntev -lub sijhawm ua haujlwm ntawm qhov kub siab dua, nyob ze- alloys xws li Ti-6242S (lub siab kub titanium alloy uas muaj silicon) lossis TA7 tuaj yeem txiav txim siab.

Antioxidant kev ua haujlwm:

Ti-6Al-4V tsim cov txheej tiv thaiv oxide hauv qab Tsawg dua lossis sib npaug li 600 degree, nthuav tawm oxidation zoo dua li txhuas thiab magnesium alloys. Nyob rau ntawm qhov kub siab dua, tus nqi oxidation nrawm nrawm heev, ua rau muaj qhov sib txawv ntawm cov nplais oxide nyob rau saum npoo nrog cov thickening ntawm cov pa oxygen diffusion cheeb tsam (embrittlement txheej), uas ua rau txo qhov ductility. Rau kev txhim kho oxidation tsis kam, titanium alloys uas muaj Nb thiab Mo lossis cov txheej txheem tiv thaiv kub tuaj yeem xaiv tau.

Fatigue Performance (Tswj siv tus nqi)

Lub zog qaug zog ntawm Ti-6Al-4V yog qhov nkag siab zoo rau microstructure, qhov zoo ntawm qhov chaw, thiab kev ntxhov siab. Cov hauv qab no yog cov txiaj ntsig siv tau zoo:

Lub koom haum xwm txheej	Siab - voj voog qaug zog (10⁷ cycles, R=0.1)	Muaj cov xwm txheej
Equiaxed microstructure (lub xeev annealed)	500 - 600 MPa	Cov khoom siv nrog cov kev xav tau siab rau kev qaug zog tawg pib ua haujlwm
Lub koom haum Bimodal	550 - 650 MPa	Optimal kev ua tau zoo, lub ntsiab kev xaiv rau aviation structural Cheebtsam
Lub koom haum Web Basket (STA State)	600 - 700 MPa	Cheebtsam nrog siab xav tau rau qaug zog tawg kev loj hlob kuj thiab tawg toughness

Nco tseg: Kev ua haujlwm qaug zog tiag tiag yog cuam tshuam los ntawm ntau yam xws li nto roughness, residual stress, loading zaus, thiab corrosive ib puag ncig. Qhov tseem ceeb ntawm kev qaug zog yog pom zoo kom ua raws li kev kho mob saum npoo xws li txhaj tshuaj peening los txhim kho lub neej qaug zog.

Siv tau Media:

1. Atmospheric Ib puag ncig: Kev tiv thaiv corrosion zoo heev, tsis muaj txheej txheej tiv thaiv yuav tsum tau ua.

2. Seawater thiab Chloride Solutions: Superior resistance to pitting and crevice corrosion (note crevice design).

3. Oxidizing Acids: Xws li nitric acid (ntawm tag nrho cov concentrations ntawm chav tsev kub), chromic acid, nrog zoo corrosion kuj.

4. Cov kua qaub qis qis: xws li dilute sulfuric acid (tsawg dua lossis sib npaug li 10%), dilute hydrochloric acid (tsawg dua lossis sib npaug li 5%), uas tuaj yeem tiv taus ntawm chav tsev kub.

5. Organic Acids: Acetic acid, oxalic acid, citric acid, thiab lwm yam.

6. Alkaline Solutions: Sodium hydroxide, potassium hydroxide, thiab lwm yam, nrog corrosion kuj zoo nyob rau hauv chav tsev kub.

7. Aviation Kerosene, Hydraulic Roj, Lubricating Roj: Zoo compatibility.

8. Siab -Tsuas Kub, Dej Chlorine Gas (cuam tshuam qhov kub thiab txias).

Lus Cim: Ti-6Al-4V tsis tiv taus cov roj chlorine qhuav, kub siab concentrated sulfuric acid (＞70%), concentrated hydrochloric acid (＞20%), hydrofluoric acid, thiab muaj zog alkaline molten ntsev. Hauv kev ua haujlwm nrog kev pheej hmoo ntawm hydrogen absorption (xws li kev tiv thaiv cathodic), rhiab heev rau hydrogen embrittlement yuav tsum tau soj ntsuam.

Ti-6Al-4V (Qib 5, TC4) yog haum rau siab-lub zog, lub teeb yuag, corrosion-resistant, thiab nruab nrab-kub daim ntaub ntawv, thiab yog pom zoo rau siv nyob rau hauv cov nram qab no teb:

Daim ntawv thov teb

Aerospace (qhov kev lag luam loj tshaj plaws, suav txog ntau dua 40% ntawm kev siv thoob ntiaj teb)
Cov yam ntxwv ntawm lub dav hlau (ribs, thav duab, tsaws iav qhov chaw), compressor disks thiab hniav, kiv cua, fasteners, hydraulic tubing, fuselage tawv, cav nacelle lug, tshav kub shields, missile casings, foob pob ua ntxaij structural Cheebtsam.
Kev kho mob thiab Biomedical Engineering (implant- qib ntawv pov thawj)
Hip femoral stems, lub hauv caug sib koom ua ke, kev cog hniav, kev kho tus txha caj qaum thiab cov ntsia hlau, daim hlau thiab cov ntsia hlau, cov cuab yeej phais (raws li ASTM F136 / ISO 5832-3).
Marine thiab Shipbuilding
Ship propellers, shafts, seawater heat exchanger tube daim hlau, sib sib zog nqus - hiav txwv submersible siab hulls, seawater twj thiab valve Cheebtsam, sonar domes, nkoj seawater piping systems.
Automotive thiab High -Kev Sib Tw Ua Si
High-kev ua tau zoo ntawm lub cav txuas rods, li qub, lub rooj zaum caij nplooj ntoos hlav, lub tog raj kheej hangers, chassis ncua kev kawm ntawv, lub teeb yuag log bolts, turbocharger Cheebtsam.
Petrochemical thiab Zog
Thaum tshav kub kub exchanger raj, reactor internals, li qub, piping systems (nrog rau acidic nruab nrab tej yam kev mob), electrochemical anodes, nuclear reactor txias twj tso kua mis Cheebtsam.
Cov khoom ua si thiab cov khoom siv
Golf club taub hau, tsheb kauj vab ncej, tennis racket thav ntawv, tsom iav thav ntawv, saib rooj plaub, khoom siv sab nraum zoov.
Kev lag luam Nuclear
Nuclear reactor roj sib sau ua ke cov txheej txheem, cov khoom siv cua txias (vim qhov tsis tshua muaj hluav taws xob nqus hluav taws xob hla -section thiab corrosion kuj).
Tub rog thiab Defense
Armor plates, missile casings, torpedo Cheebtsam, cov khoom tiv thaiv tus kheej, unmanned aerial tsheb yam ntxwv Cheebtsam.

Kev xa khoom thiab Customization

Peb muab cov khoom lag luam hloov pauv tau yooj yim thiab txhim khu kev qha los xyuas kom meej tias koj tau txais Ti-6Al-4V (Gr5, TC4) cov ntaub ntawv uas phim koj qhov project xav tau.

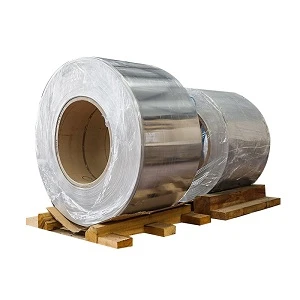

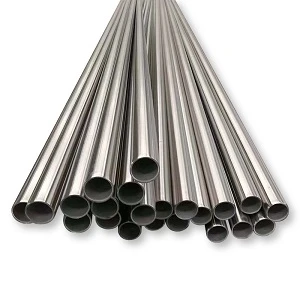

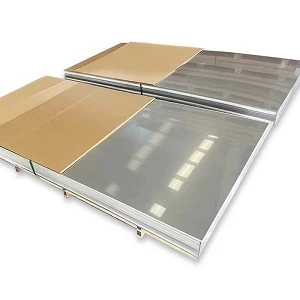

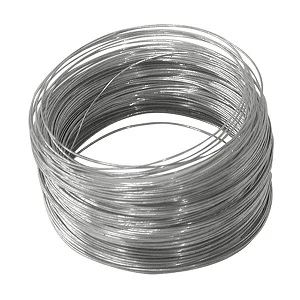

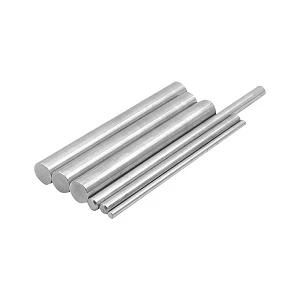

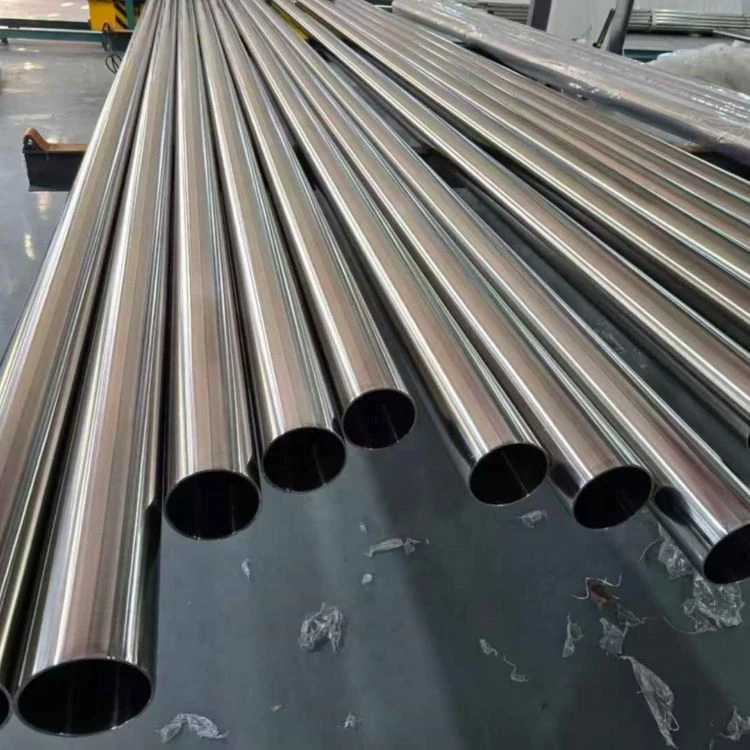

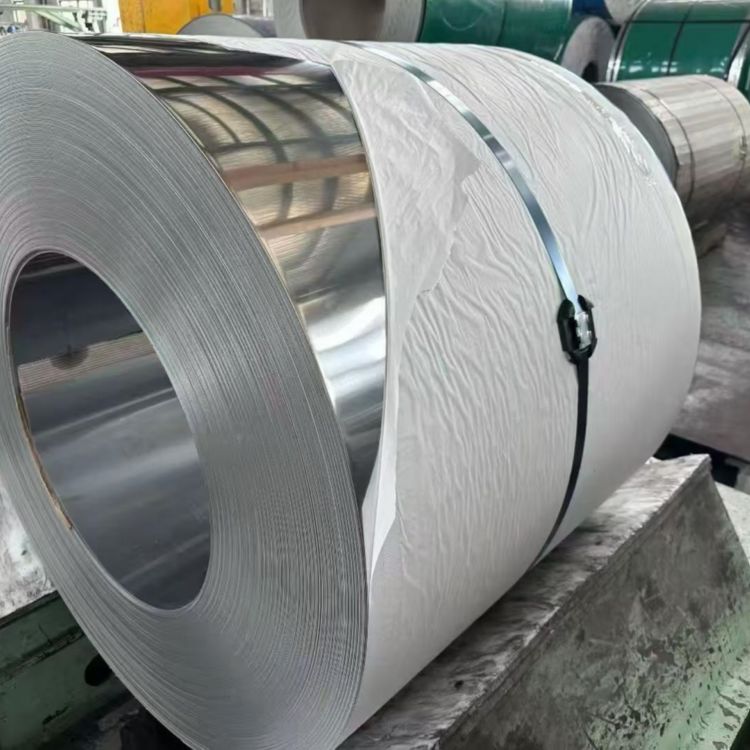

Daim ntawv	Ntawv / phaj	Bar / Qws	Tube / Tube	Sawb / Sheet Coil	Hlau / Hlau Rod
Pauv ntau yam	Thickness: 0.5 - 100 hli Dav: Tsawg dua lossis sib npaug li 1500 mm	Txoj kab uas hla Φ6-500mm	Sab nraud txoj kab uas hla Φ10-300mm	Thickness: 0.1-3.0 hli Dav: 10-600 mm	Txoj kab uas hla Φ0.5-10mm
Customization Muaj peev xwm	Kub- dov los yog txias- dov daim hlau, ultra- daim hlau nyias (pib los ntawm 0.1mm), ruaj -ntev txiav, tshwj xeeb nto kho (pickling, sandblasting, polishing)	Loj- loj forged tuav (txog Φ800 mm), kub- dov tuav, polished tuav, tshwj xeeb- zoo li tus tuav, thiab cov kev kho cua sov sib txawv (annealing, STA)	Seamless raj / welded raj, loj- txoj kab uas hla tuab- cov hlab ntsa, raj kawg ua (beveling, tsau ntev), ntev tshwj xeeb	Precision strip cov ntaub ntawv, stamping coil Tshuag, laminated blanking, tsis yog - qauv dav, tshwj xeeb tiv thaiv zaj duab xis, electrolytic polishing	Precision drawing, vuam muab tub lim, 3D luam ntawv filaments, tshwj xeeb nto kho (polishing, acid ntxuav)

Vim li cas thiaj xaiv peb? - Txhim khu kev qha Engineering Technology. Dependable xa khoom.

Peb tsis yog ib tus neeg muag khoom xwb, tab sis yog ib tus neeg koom tes nrog cov ntaub ntawv ntseeg siab rau koj hauv Suav teb.

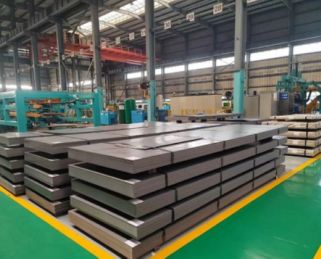

Vertically Integrated Production

Muaj 20,000㎡ qhov chaw nrog 10+ automated kab (8, 000+ tons / xyoo). Hauv - tsev cuab yeej & qhov chaw tuag ua rau muaj kev hloov kho sai thiab tswj tus nqi zoo - tsis muaj tus neeg nruab nrab kos npe.

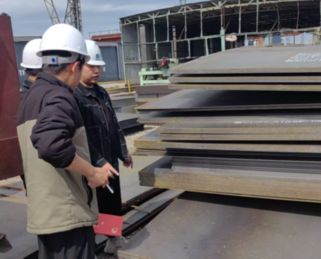

Kev Tswjhwm nruj nruj ntawm txhua theem

Tag nrho traceability nyob rau hauv lub tseem ceeb QC checkpoints thoob plaws hauv ntau lawm . 100% raws li ASTM/ASME, EN, thiab GB qauv. Cov ntaub ntawv xeem cov ntaub ntawv muaj nyob nrog txhua qhov khoom xa tuaj.

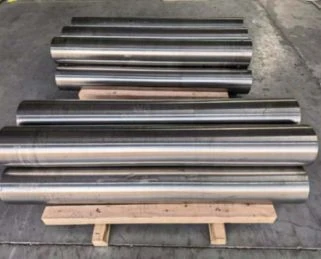

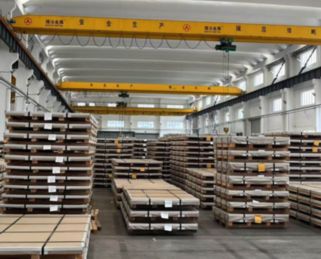

Txhim khu kev xa khoom & Export ntim

10+ xyoo xa tawm mus rau Tebchaws Europe, North America, Southeast Asia & Middle East nrog cov dej tsis muaj dej thiab tiv thaiv- xeb, ua ke nrog cov kev xaiv thauj khoom yooj yim kom muaj kev nyab xeeb thiab nyob rau - lub sijhawm tuaj txog.

Qauv validation ua ntej pawg ntau lawm

Peb muab cov qauv dawb rau kev kuaj xyuas zoo, tso cai rau koj tso cov xaj xaj tsuas yog tom qab kev pom zoo. Peb xyuas kom meej qhov sib xws los ntawm cov qauv mus rau cov khoom loj los ntawm qhov ntsuas qhov tseeb thiab kev tsim pob tshab.

FAQ

Q: Dab tsi yog qhov zoo ntawm Ti-6Al-4V?

Q: Qhov kev kho cua sov zoo li cas Ti-6Al-4V xav tau?

Q: Qhov siab tshaj plaws kev khiav hauj lwm kub yog dab tsi?

Q: Dab tsi yog qhov txawv ntawm Ti-6Al-4V thiab ntshiab titanium (Qib 2)? Yuav ua li cas xaiv ntawm lawv?

Q: Dab tsi yog qhov vuam kev ua tau zoo ntawm Ti-6Al-4V? Dab tsi yuav tsum tau sau tseg?

Q: Ti-6Al-4V puas tuaj yeem siv los hloov lwm cov titanium alloys?

Cim npe nrov: ti-6al-4v (gr5, tc4), Tuam Tshoj ti-6al-4v (gr5, tc4) manufacturers, lwm tus neeg, Hoobkas

Cov khoom sib piv	Ti-6Al-4V (Gr5, TC4)	Ntshiab titanium (Gr2, TA2)
Hom khoom	Alpha plus beta titanium alloy (muaj Al thiab V alloying ntsiab)	Muaj ntshiab titanium (Ti ntau dua lossis sib npaug rau 99.0%)
Hom khoom	Ntau tshaj los yog sib npaug rau 895 MPa (annealed mob), uas yog ntau dua li ntshiab titanium	345-450 MPa
Qhov ntom	4.43 g / cm³	4.51 g / cm³ (siab dua me ntsis)
Corrosion Resistance	Zoo heev corrosion kuj (piv rau ntshiab titanium, tab sis me ntsis inferior nyob rau hauv ib co txo acids)	Zoo heev corrosion kuj, tshwj xeeb tshaj yog rau seawater thiab nitric acid
Ua haujlwm tau	Nws muaj lub zog siab, ua rau nws nyuaj rau kev ua haujlwm, thiab xav tau cov cuab yeej tshwj xeeb txiav thiab txias.	softer nyob rau hauv kev ntxhib los mos, yooj yim rau txheej txheem, tab sis nrog ib tug siab nyiam lo rau lub cuab tam
Weldability	Zoo, nruj inert roj tiv thaiv yuav tsum tau. Post-weld heat treatment yog pom zoo.	Superior, yooj yim rau vuam, thiab feem ntau tsis muaj kev kho cua sov tom qab vuam
Biocompatibility	Zoo heev (Kev Kho Mob Feem Ntau Siv, Nyiam rau Load-Cov Kabmob Implants)	Zoo heev (tab sis tsis muaj zog txaus rau kev thauj khoom -cov kabmob cog)
Nqe	Siab dua	qis
